A lowered threshold allows you to load, move and unload livestock almost anywhere. Straight though loading with both ramps down or use one ramp with a folding bull bar. With a gentle incline to the main deck, your livestock will load and unload with minimal stress and strain.
Embossments are incorporated into the smooth areas of the ground load trailer, which greatly increases the side panel’s strength and ability to resist denting.
Length |
36' - 57'
|
---|---|
Width |
Overall width is 102". Inside width is 99" between sides.
|
Height |
10'6" - 13'6"
|
King Pin |
6" high assembly with top locking channel. Standard setting: 30”, minimum setting: 27”, maximum setting: 44". Pin settings deeper than 44" require belly to be shortened. NOTE: 10'-0" nose is standard.
|
Landing Gear |
Extruded aluminum telescoping support legs with safety spring lock pins for height adjustment.
|
---|---|

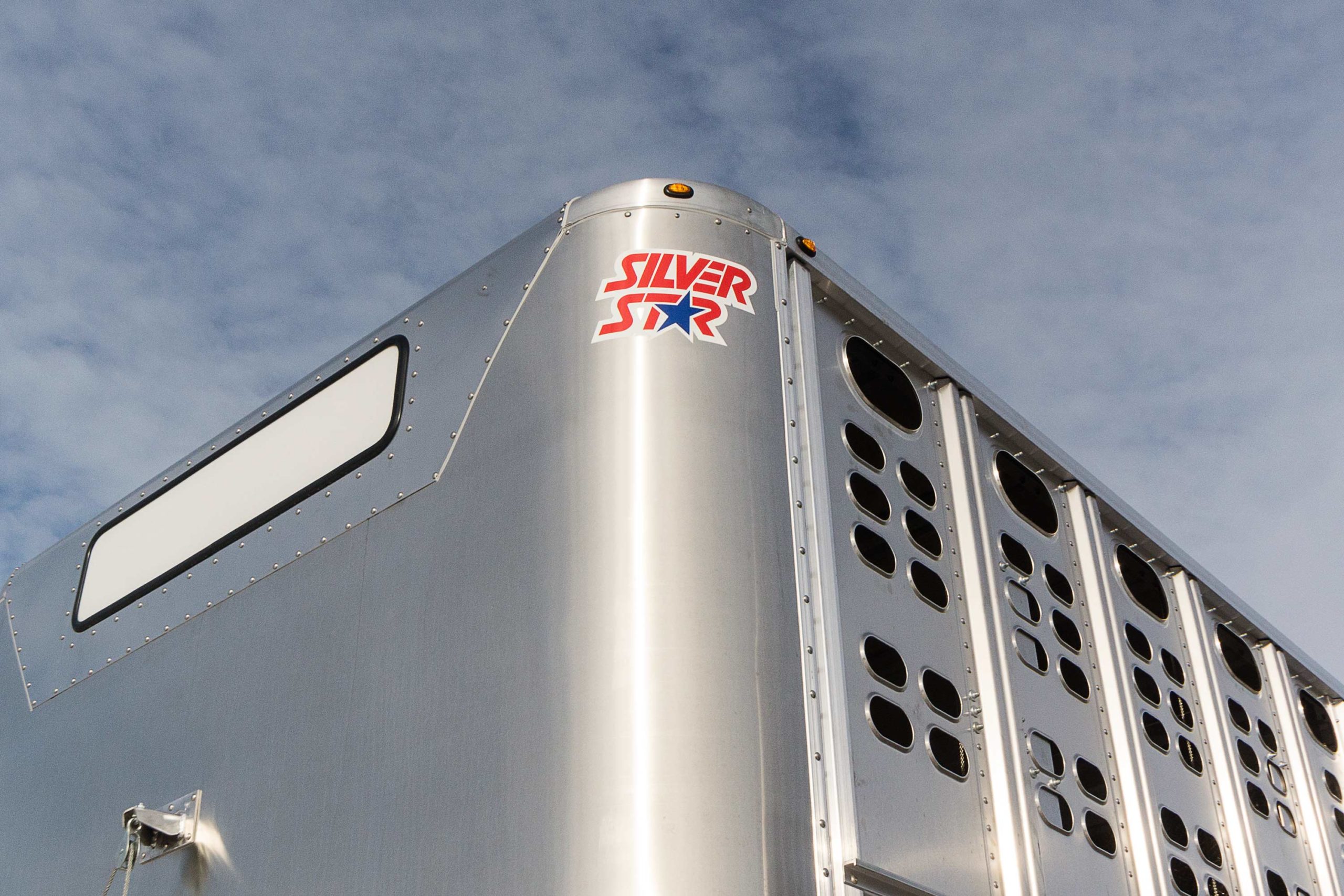

Front |
12" radius front corners with .080" aluminum single wall construction and extruded aluminum rib reinforcing channels, and a 6" aluminum lower front channel. Three-piece aluminum cap with spun corner caps.
|
Spare Tire Carrier |
Optional at extra cost.
|

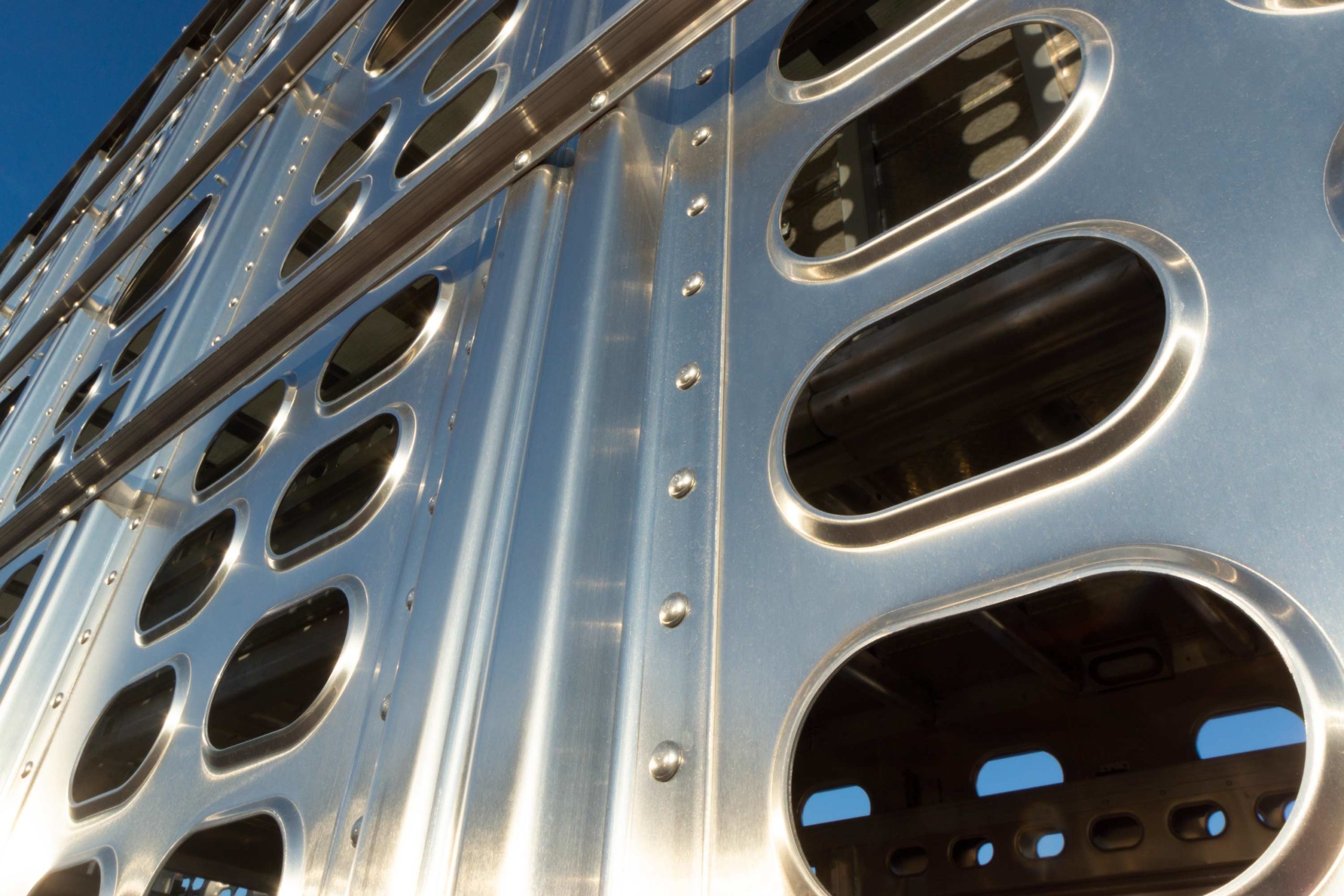

Sides |
.080" Aluminum, Formed Posts on 21" Centers
|
Clean-Out Door |
Optional at extra cost
|
Access Door |
Optional at extra cost.
|

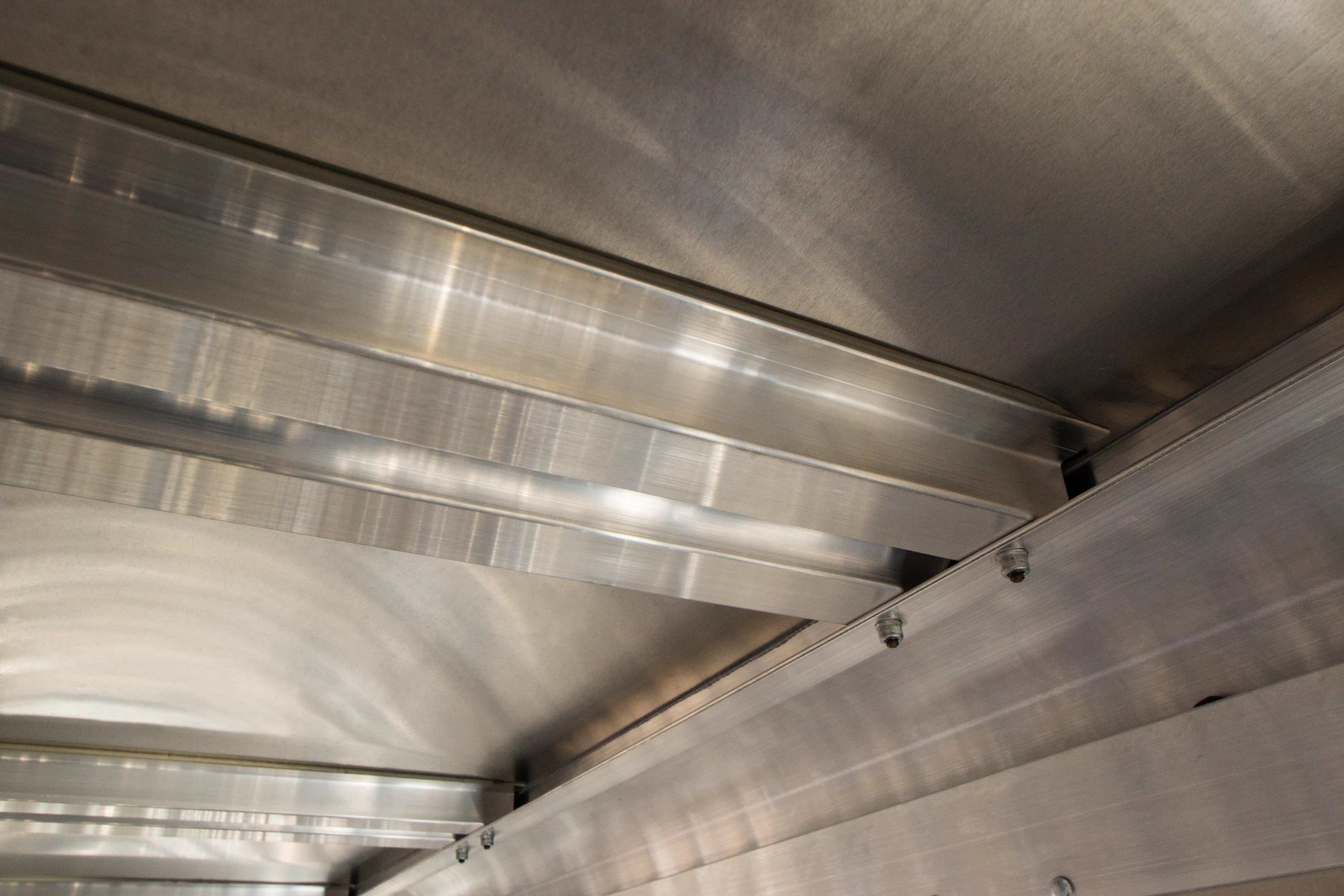

Roof |
One-piece translucent roof skin bonded to extruded aluminum roof bows. Aluminum roof is optional.
|

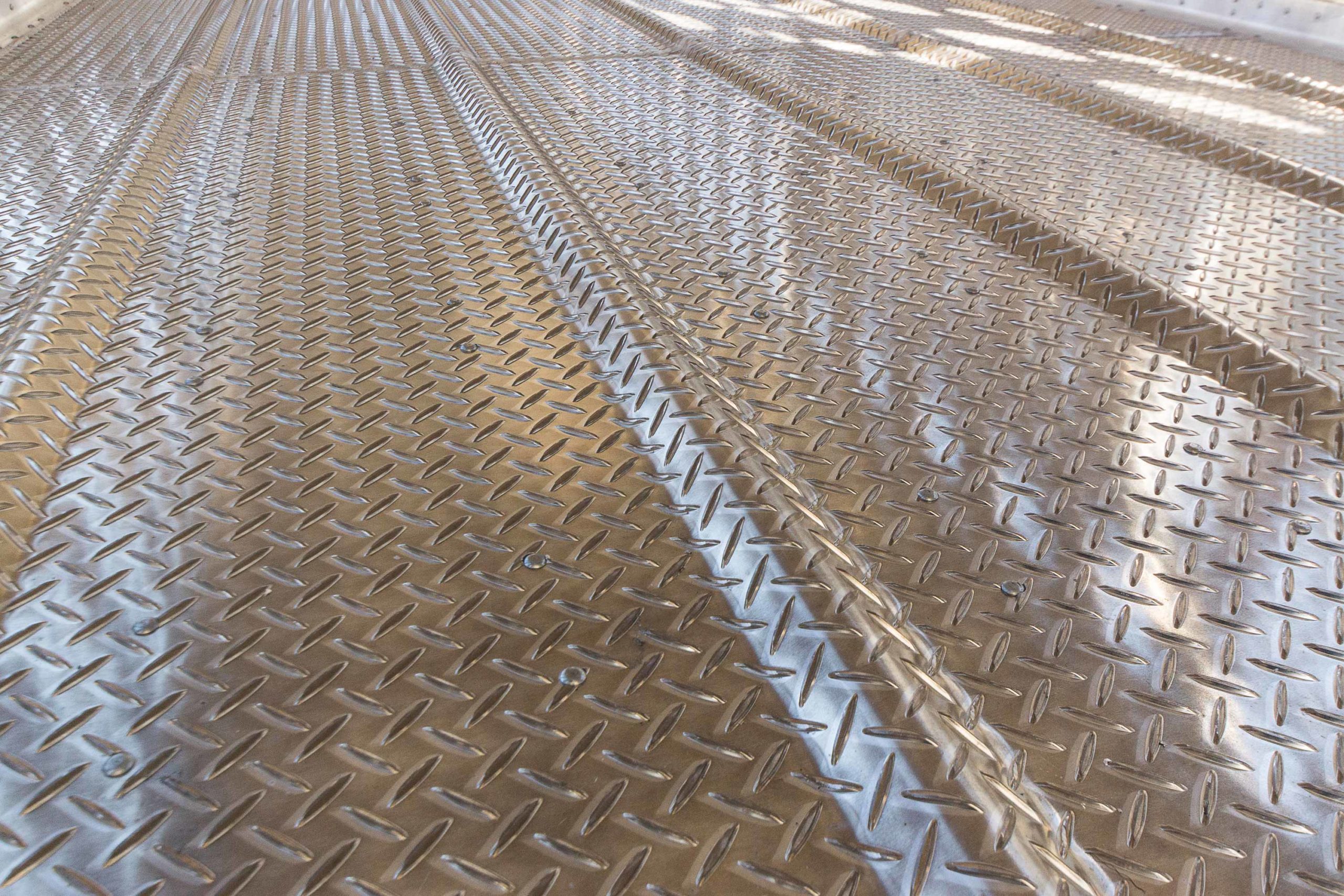

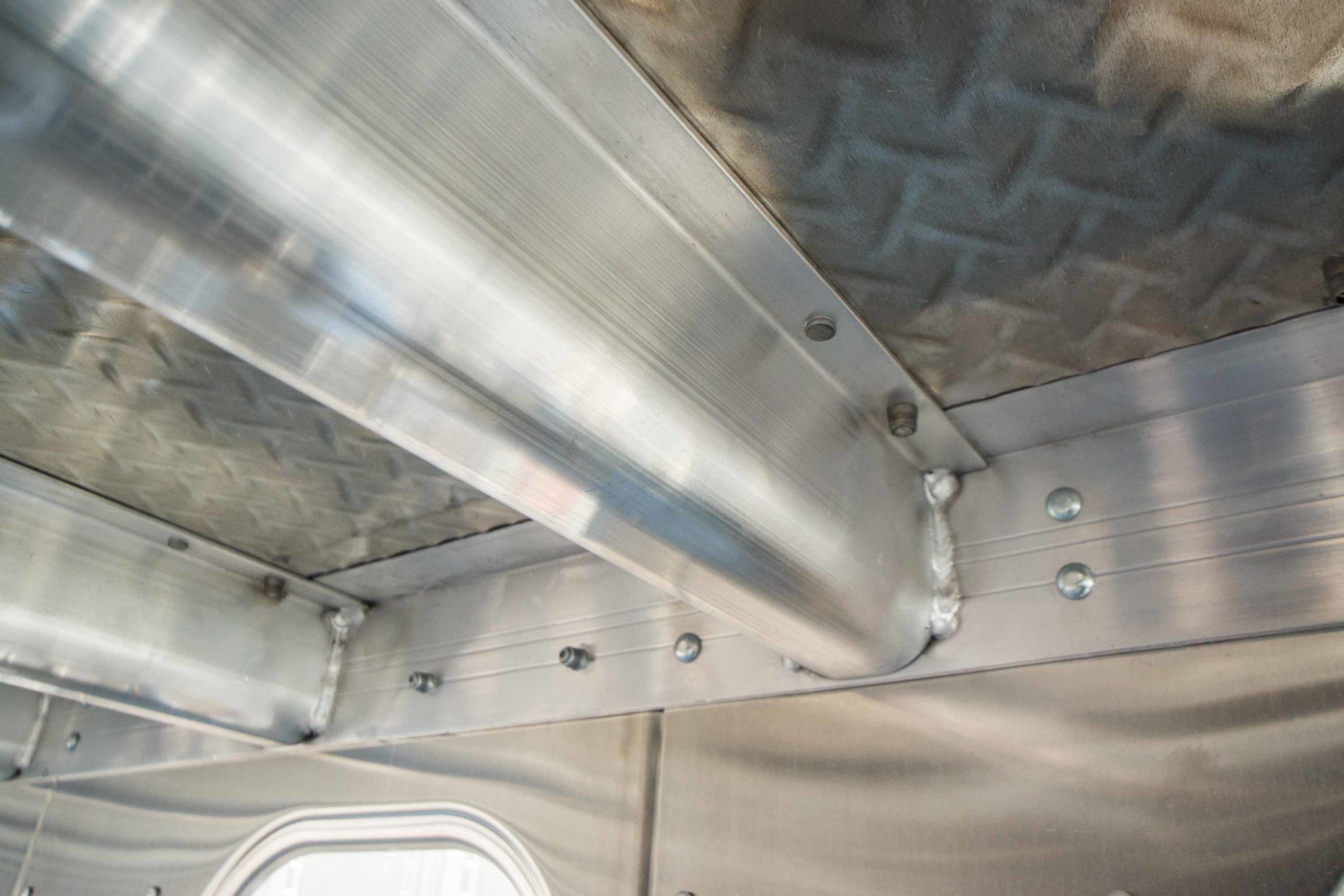

Floor |
.110 aluminum tread plate with 5 corrugations, supported by 6" high extruded aluminum crossbars.
|

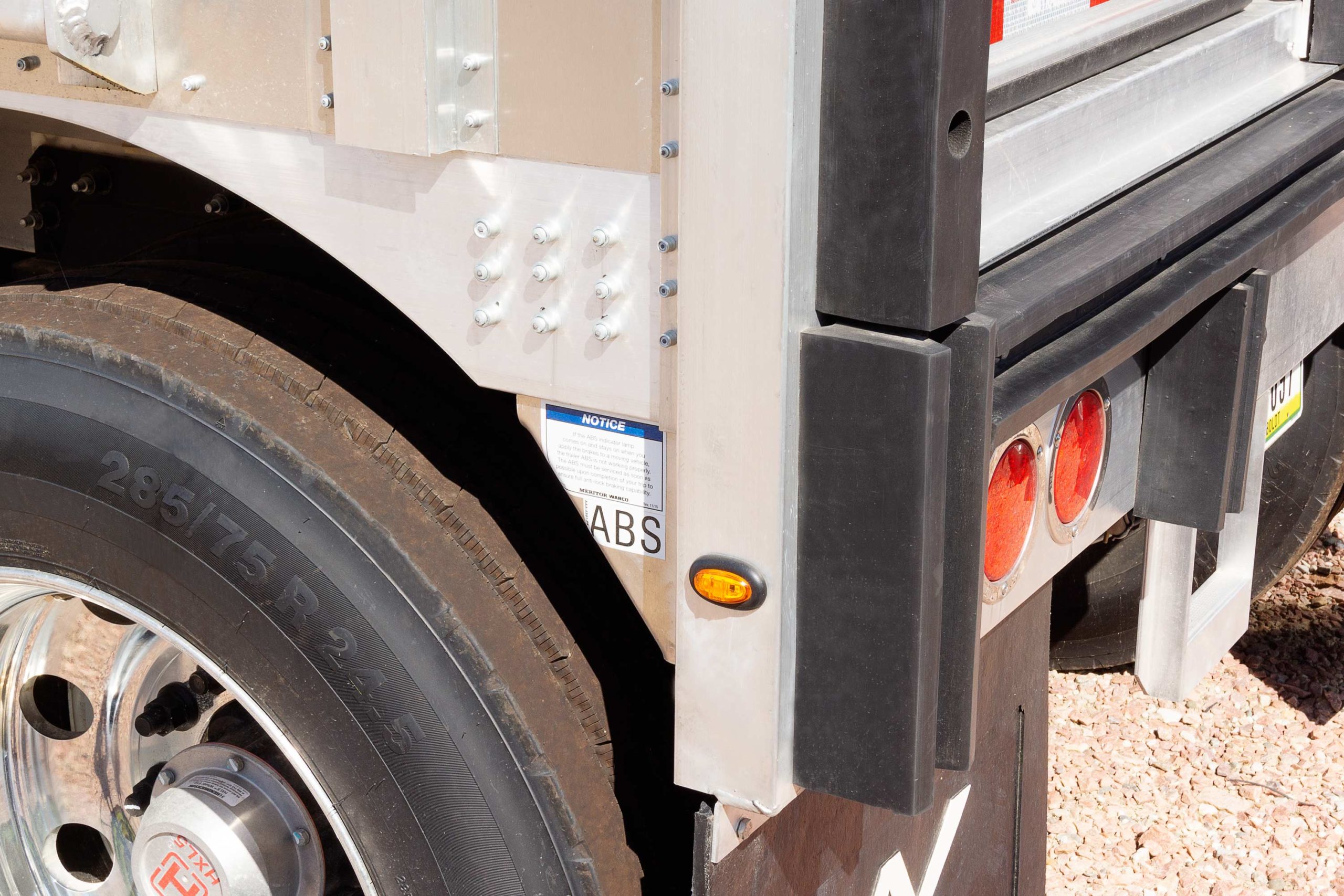

Rear End |
Left-hand roll-up with 36" opening. Right-hand solid. Full-width rubber bumper.
|
Rear Compartment |
6' standard length.
|
Decks |
Optional at extra cost.
|
Finish |
All steel components are treated to retard rust. King Pin area is completely painted prior to installation. All aluminum components are left natural.
|
Lights |
Front J560 7-way connector mounted in a nose box. Wiring harness is a ultra-blue sealed system. Tail lights are grommet mounted. Sealed LED. Midspan combination turn & clearance lights are grommet mounted sealed LED. Interior lights - 3 total. Exterior lights - 2 groups of 3 individual stop & turn tail lights with one group on each side of rear end. 2 groups of 2 oval, grommet mounted, sealed LED stop & turn lights with one group on each side of upper rear header. Rear I.D. & Marker lights are recessed grommet mounted LED clearance, marker, and license plate lights are standard.
|
---|---|

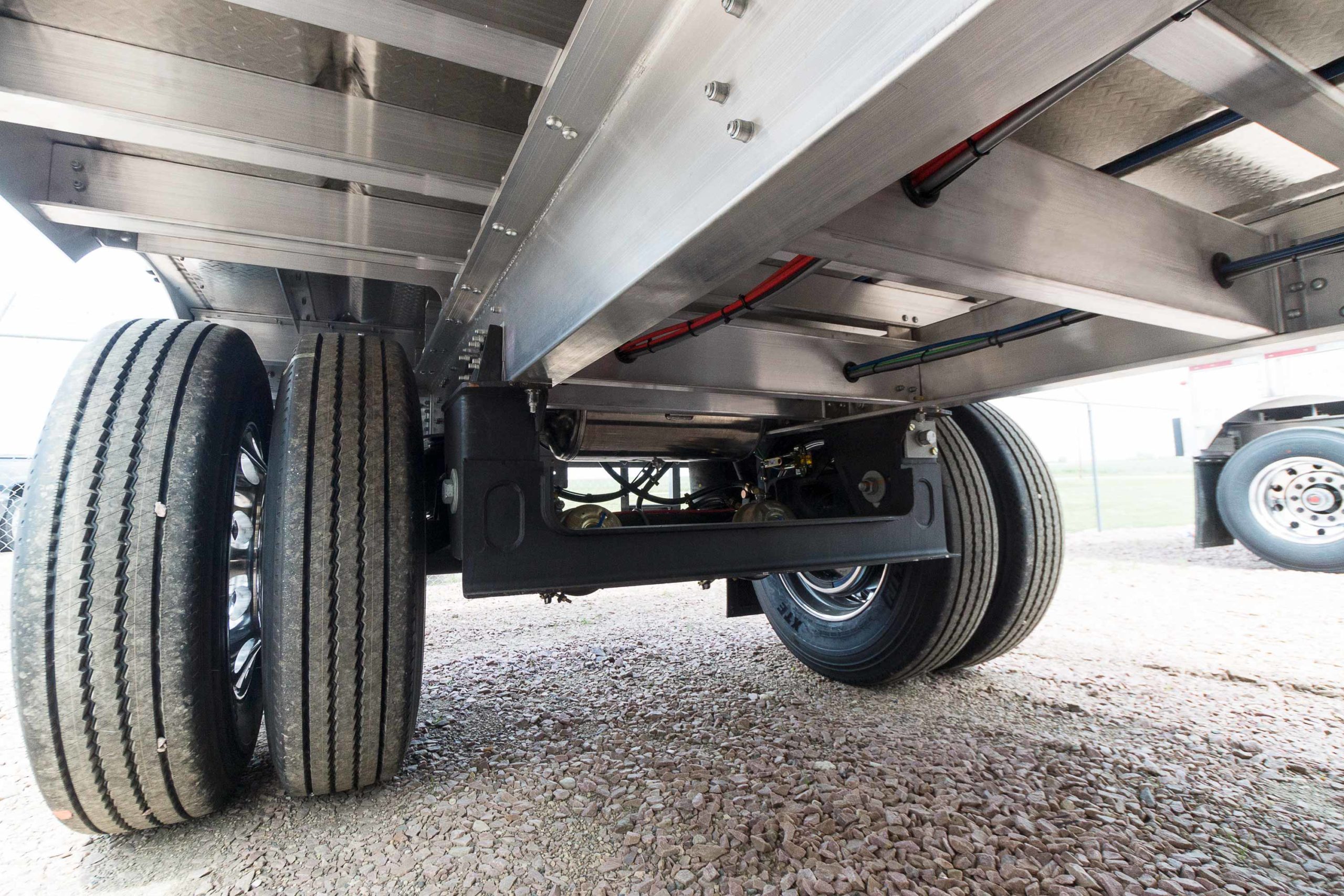

Suspension |
Air ride, flange mount, bolt-on to aluminum sub frame.
|
Axles |
Two: 22,500 lbs. nominal rating standard.
|
Brakes |
16-1/2" x 7" x 5/8" extended service air brakes, no dust shields. Mandatory FMVSS-121 braking system standard with automatic slack adjusters. ABS is standard equipment using a 2S - 1M system.
|
Hubs |
Dura-Lite, steel with National oil seals, Axilok spindle nuts, and Sentinel hub caps.
|
Drums |
Cast steel, outboard mount.
|
Wheels |
10-hole Hub-Piloted. Eight, 8.25 x 22.5 white steel disc.
|
Tires |
Eight, 255 x 70R 22.5.
|

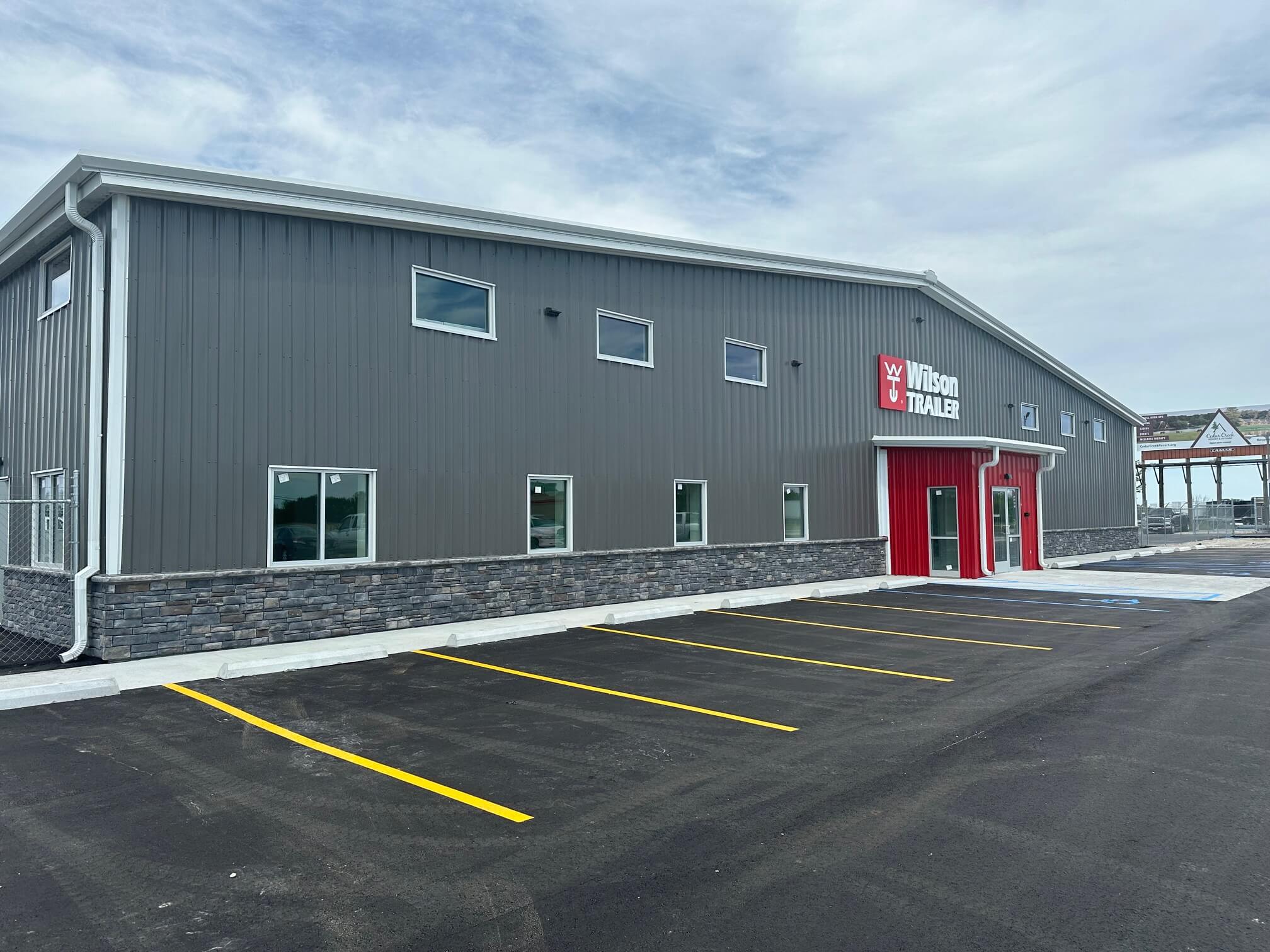

We want you to contact us whether you are buying a trailer, seeking parts or service, looking for directions or an answer to a question. Allow us the opportunity to enhance your personal experience with Wilson Trailer.
