Sand Commander

Sand Commander
LENGTH
39'
WIDTH
96"
SIDES
67"
TRAPS
27" x 31"
WHEELS
24.5 or 22.5 Steel or Aluminum

Sand Commander

The Sand Commander specializes in transporting frac sand and proppants for the petroleum industry. Built on the success of Wilson’s popular grain hoppers, this trailer is engineered with a single reinforced hopper and heavy-duty aluminum side rails designed specifically to hold the concentrated load of frac sand. Protect your dry sand hauls from moisture with the optional aluminum roof hatch.

STANDARD FEATURES

1
Hopper Reinforced to hold the concentrated load of frac sand.
2
Trap 27x31” opening steel door with optional stainless steel available.
3
King Pin Steel king pin subframe, open design to easily clean and inspect.
4
Subframe Steel subframe that’s extended to accommodate the single hopper design.
5

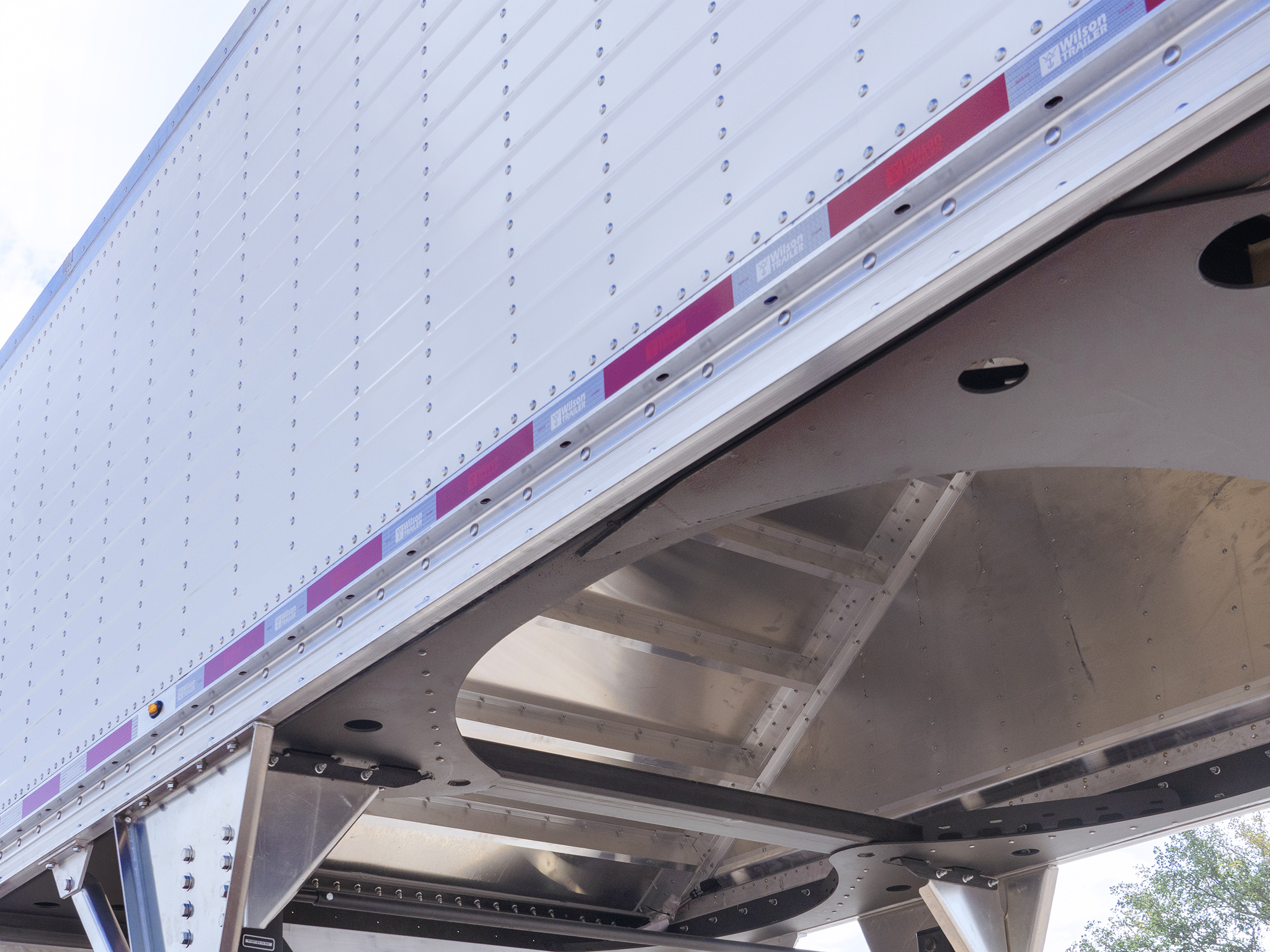

Side Rails Heavy duty aluminum side rails designed specifically to carry the load of a hopper style trailer.

Wilson Trailer Advantage

01 Hopper

Reinforced hoppers engineered to hold the concentrated load of frac sand.

Specs

Length
39'
Height
67"
Width
96"
Capacity
702 FT3 (LEVEL)
806 FT3 (HEAPED)
Trap Opening
27”X31” (OPTIONAL 33”X31”)
Side Walls
White (STD); Optional: Black, Gunmetal, Stainless Steel
Double-Wall front to back inside skin and outside skin posts on 10” centers
Front and Rear Walls
White (STD); Optional: Black, Gunmetal, Stainless Steel

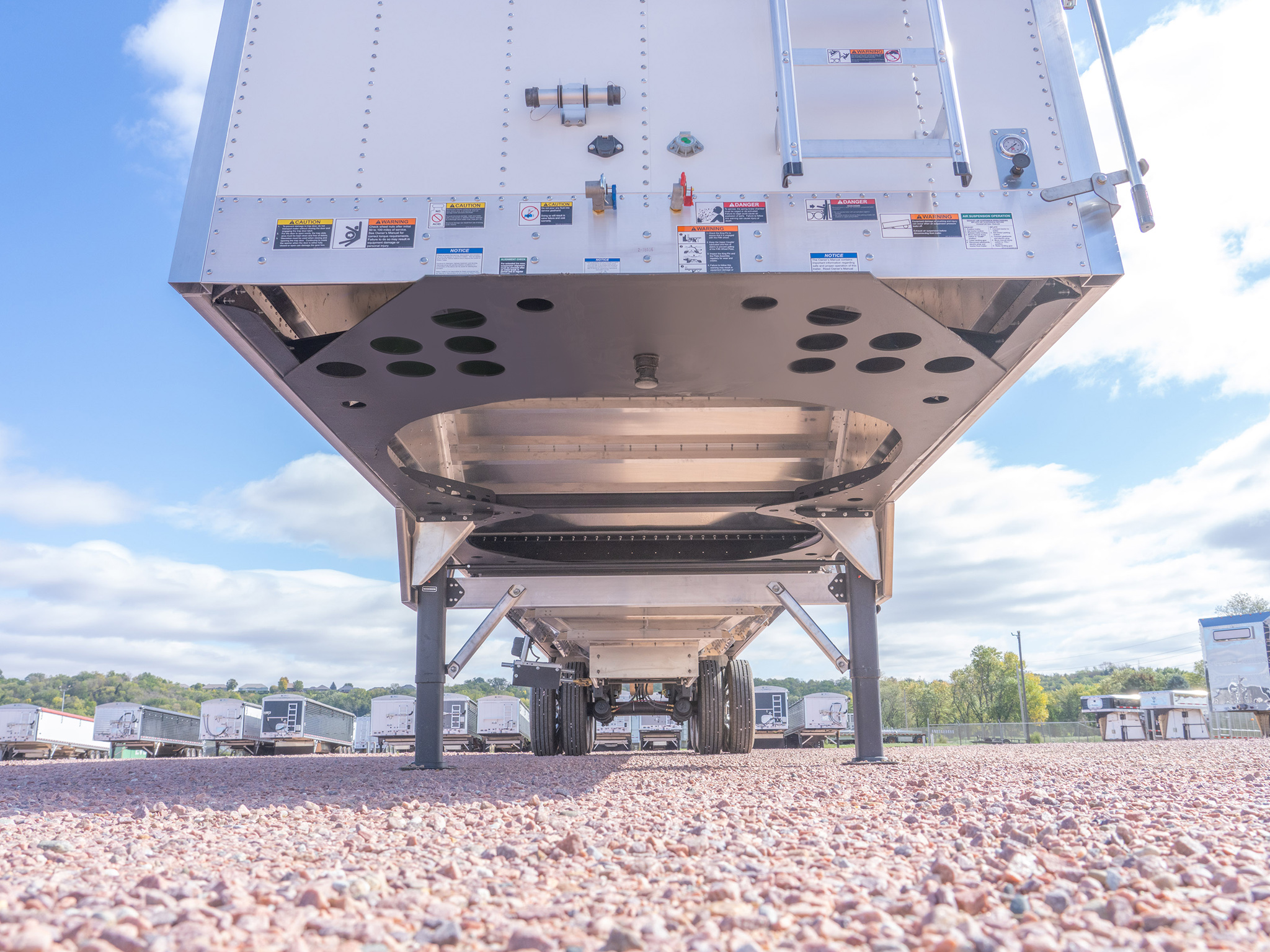

Hopper
Thicker Upper and Lower Slope Sheets with Reinforced Corners

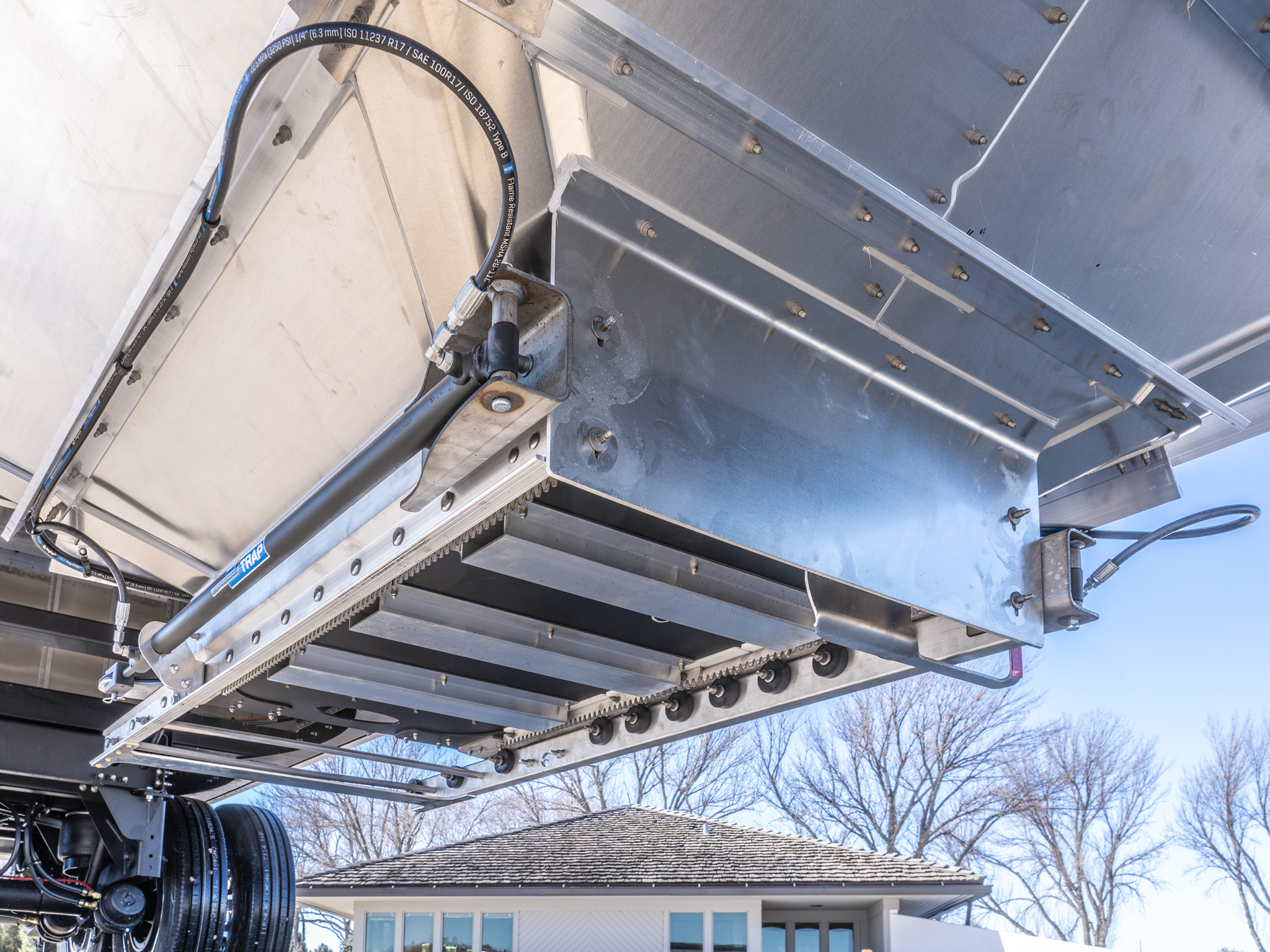

Trap
27”x31” Rack & Pinion ; Optional: 33”x31”
Trap Opener
Manual Opener (STD); Optional: Electric Opener and Hydraulic Opener
Landing Gear
Jost UL-551 Steel
Lighting
1 rows of 5 Micro Nova PC rated lights
Mud Flaps
Rubber with Wilson Trailer Company brand
Slopes
35 degree front and rear

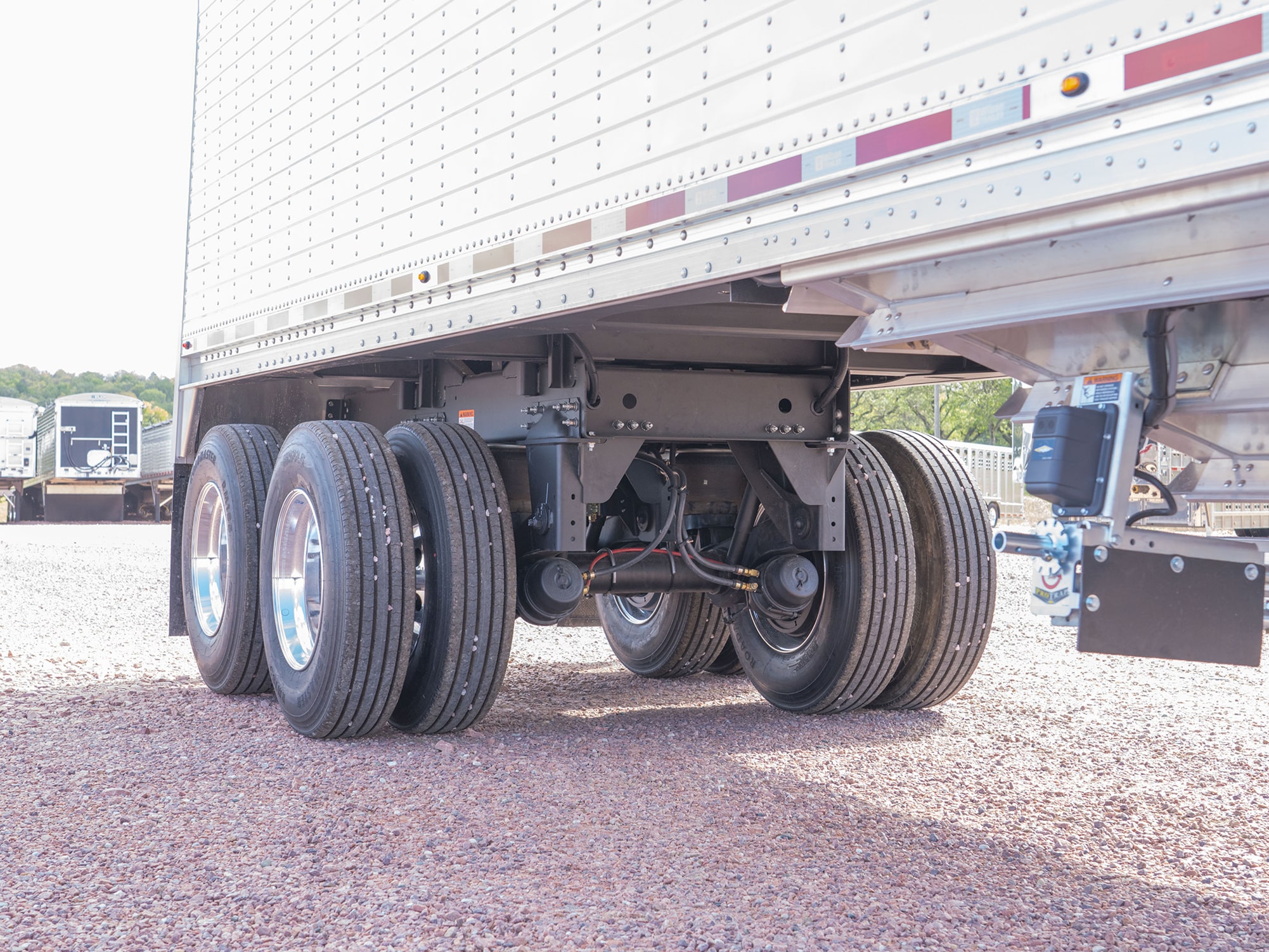

Suspension
Hendrickson AANT
Brake Systems
Drum Brakes Extended Life (STD); Optional: Disc Brakes
Hubs
Duralite w/Cast Drums
Wheel Seals
Stemco Guardian
Wheels
24.5 or 22.5 Steel or Aluminum
Tires
Choice of size and manufacturer

POPULAR OPTIONS

Aluminum Roof with Hatches

Keep out moisture for dry sand hauls with the optional enclosed aluminum roof hatch.
