"You'll Be Glad You Brought A Wilson Along For The Ride."
Ride safe and secure. Ride smooth and quiet. You will appreciate the attention paid towards the safe transportation of your horses and the convenience features Wilson Trailer has designed into this upgraded version of the Roper trailer.
Take a look at the many Advantages like the double walled and riveted construction which Wilson Trailer brings to the horse trailer market and then see the many Options available to customize this equestrian trailer just for you.
Length |
16 ft. nominal, plus 7 ft. gooseneck. Available at extra cost in lengths up to and including 342 ft. in 2 ft. increments with corresponding increases in GVWR.
|
---|---|
Width |
7 ft. inside width.
|
Height |
7 ft. inside height.
|
Front End |
Tapered front
|
---|---|
Sides |
Interlocking hollow tube slat, horizontally stacked and glued together.
|

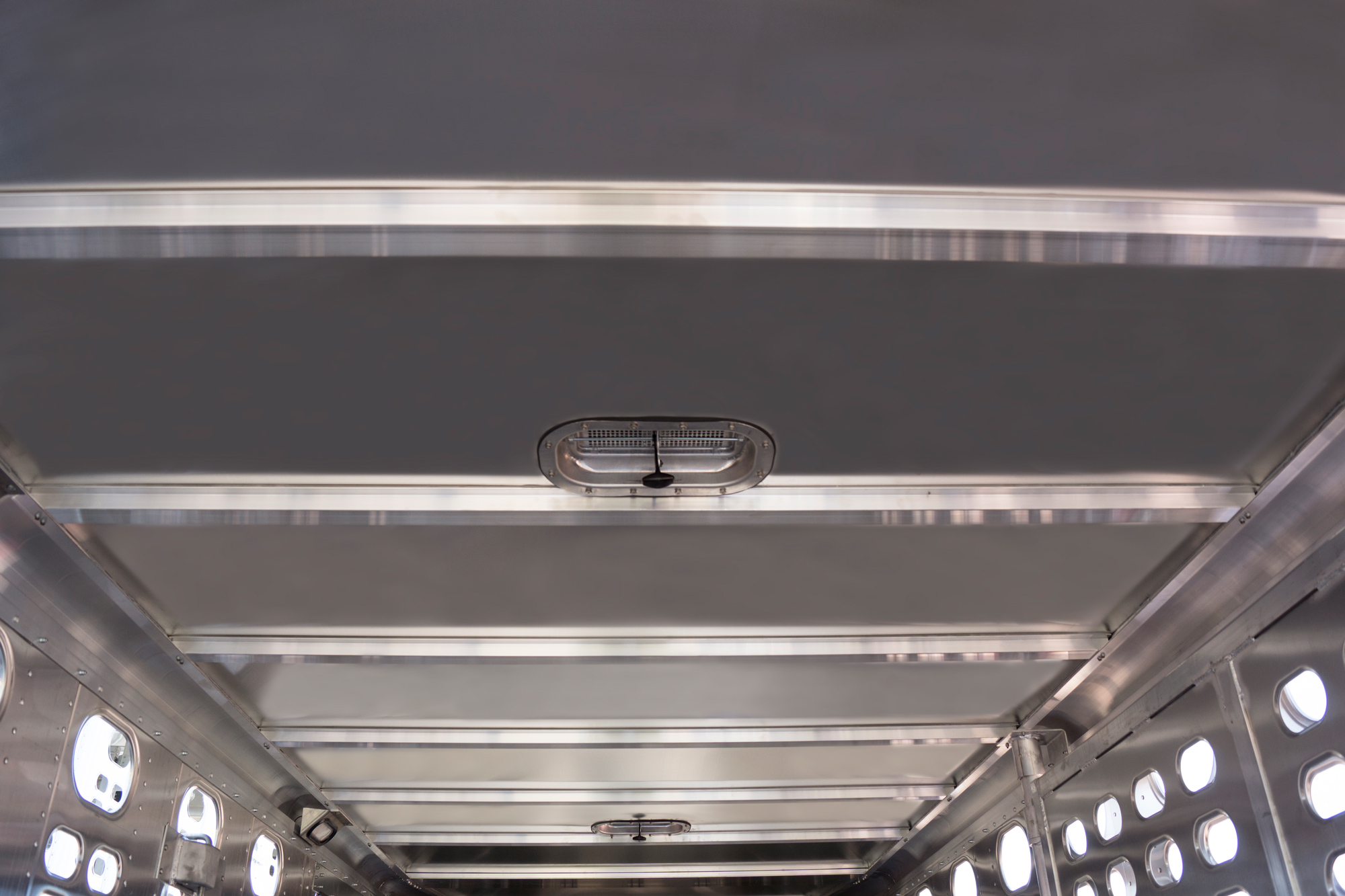

Roof |
One-piece, stretched aluminum.
|
Rear Door |
Choose between Style "A", "B", "F" and Freight Style Sealed Plymetal, Stainless Steel w/Windows (50/50 or 60/40).
|
Rear End |
Full-width rubber bumper.
|

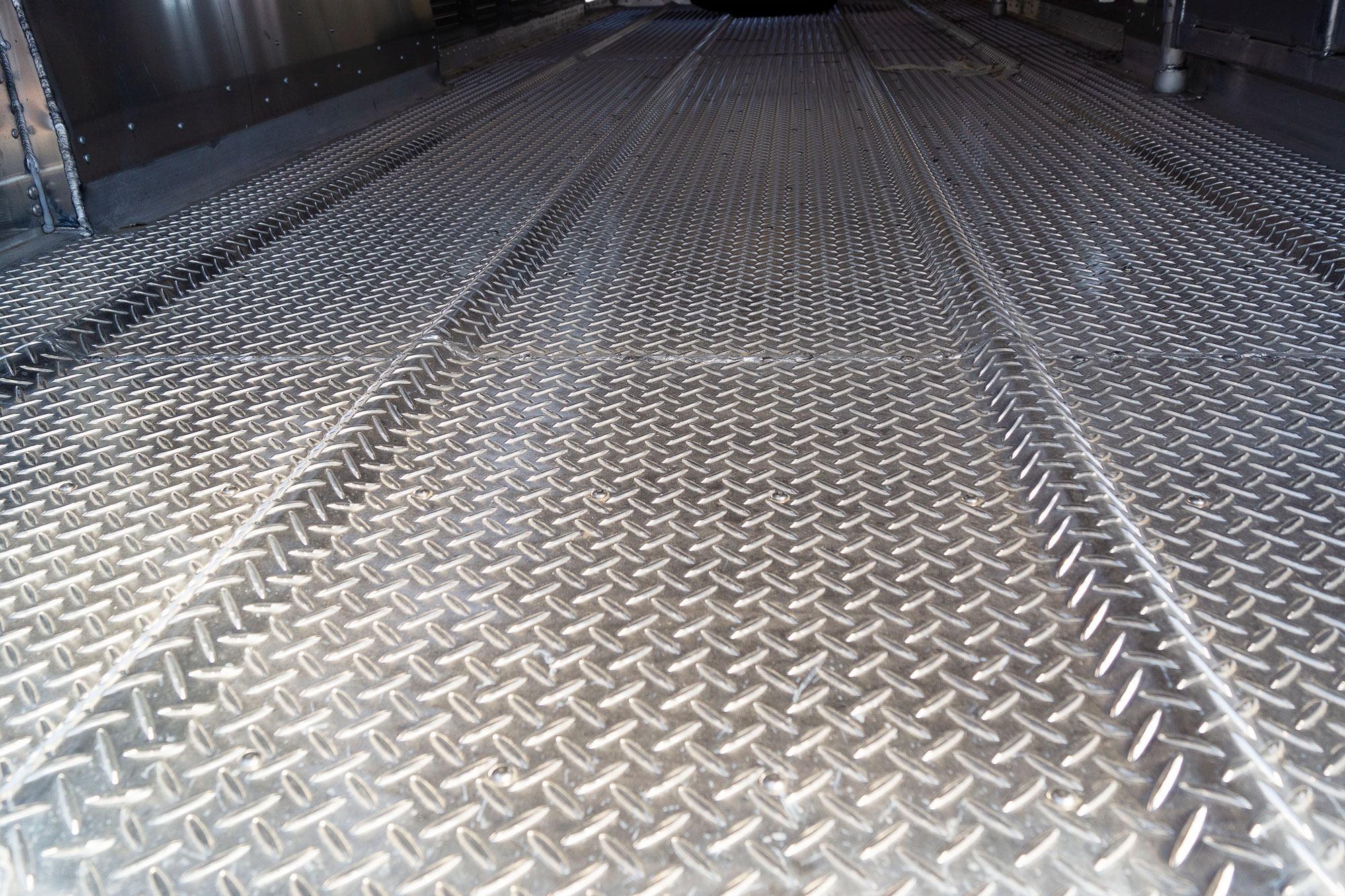

Floor |

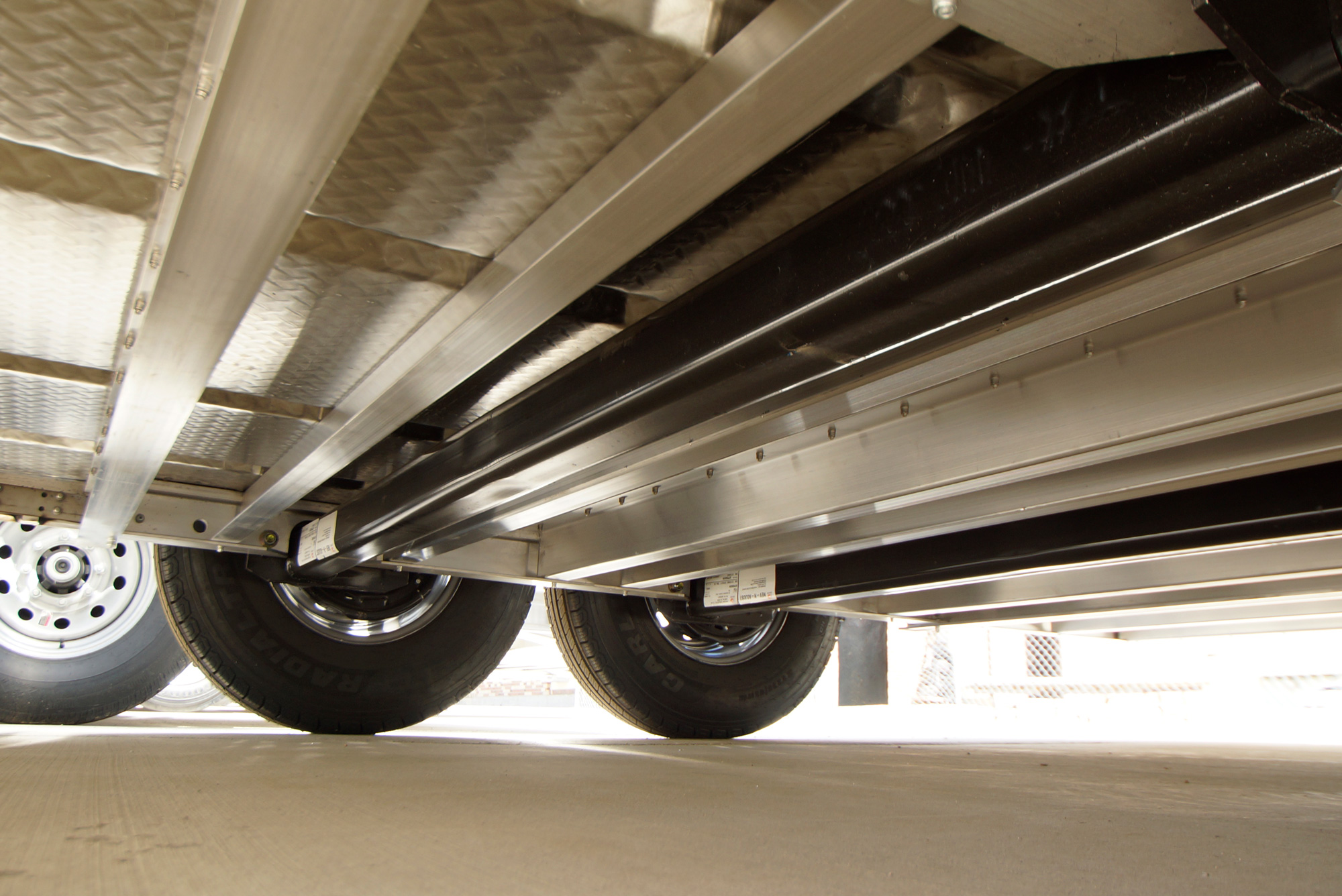

BELLY: .110" thick aluminum treadplate with 4 longitudinal corrugations. Crossbars on 9" centers. Aluminum Sub-frame. NOSE: .102" thick flat aluminum.
|
Side Door |
One - With lock rod latch, located on driver's side, with 33" opening, or 50" opening.
|
Header |
Extruded aluminum.
|
Crowd Gate |
Style "A" with outside-release latch; punched pan. Standard on trailer 24' and under. Trailers over 24' you must call out 1 full frame gate.
|
Tack Room |
OPTIONAL straight or slant tack walls.
|
Axles |
Two – 7,000 lb. rubber torsion; E-Z lub hubs.
|
---|---|
Wheels |
Must be added to the order.
|
Brakes |
Four-wheel; electric; 2 in. x 12 in.
|
