Need a bumper hitch stock trailer with a tack room?

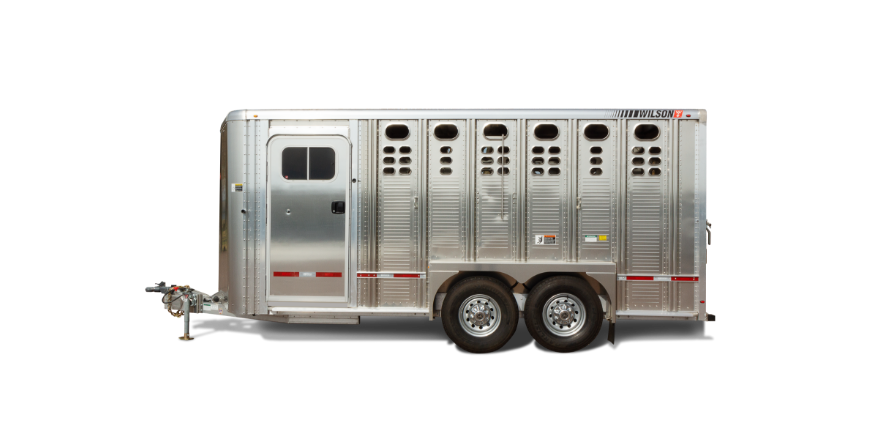

Wilson's new Roper BH is available in lengths of 14', 16' and 18'. It features a convenient and roomy tack room with a sealed and secured side door for storing all your gear. The Roper BH has all the same features as the popular Roper gooseneck model but in a bumper hitch style trailer. With Wilson's superior quality, long lasting durability and lowest cost of operation, you will feel confident you are getting your best value.
Length |
14 ft. nominal, plus nose & hitch - 5714.
16 ft. nominal, plus nose & hitch - 5716.
18 ft. nominal, plus nose & hitch - 5718.
|
---|---|
Width |
84" inside width.
|
Height |
7 ft. inside height.
|
Front End |
V front.
|
---|---|
Sides |

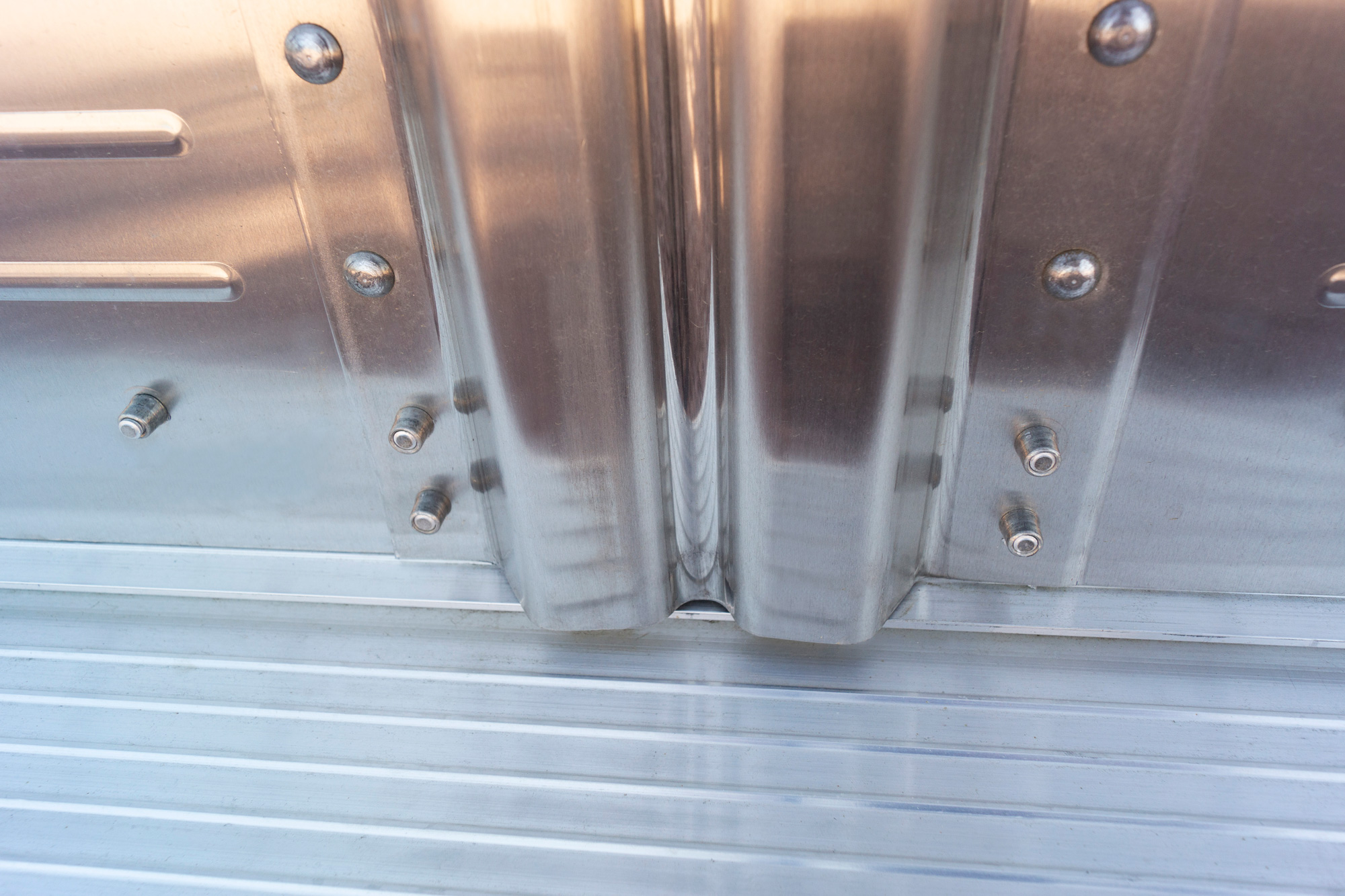

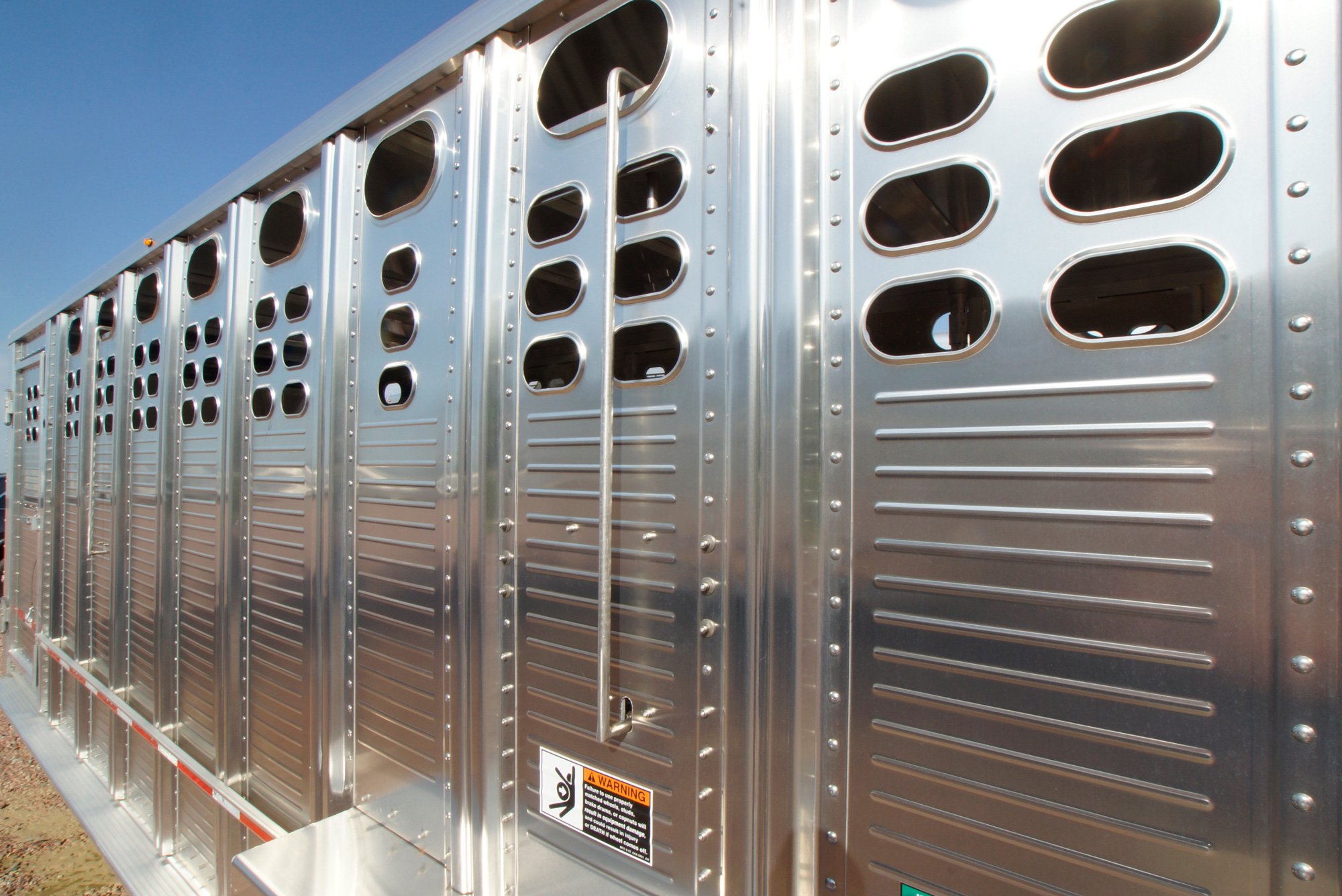

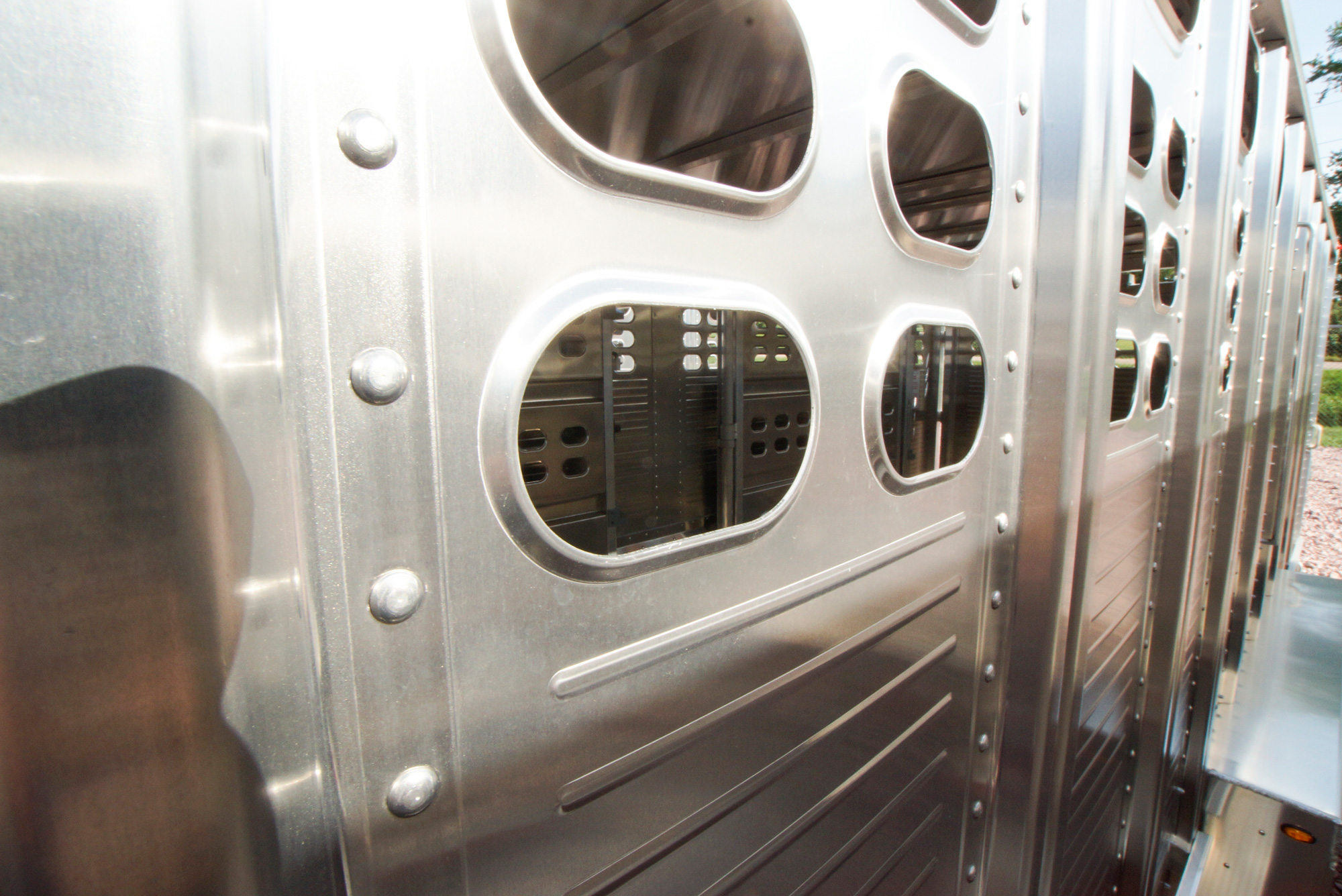

Formed offset sheet and post sections of aluminum with two sizes of punched and double-embossed oval openings. Formed posts on 21" centers. Choice of Side Patterns: C, D, J, or N. Full length conspicuity rail ahead and behind fender, which may be used as an outside tie rail.
|
Roof |
One-piece, stretched aluminum.
|
Rear Door |

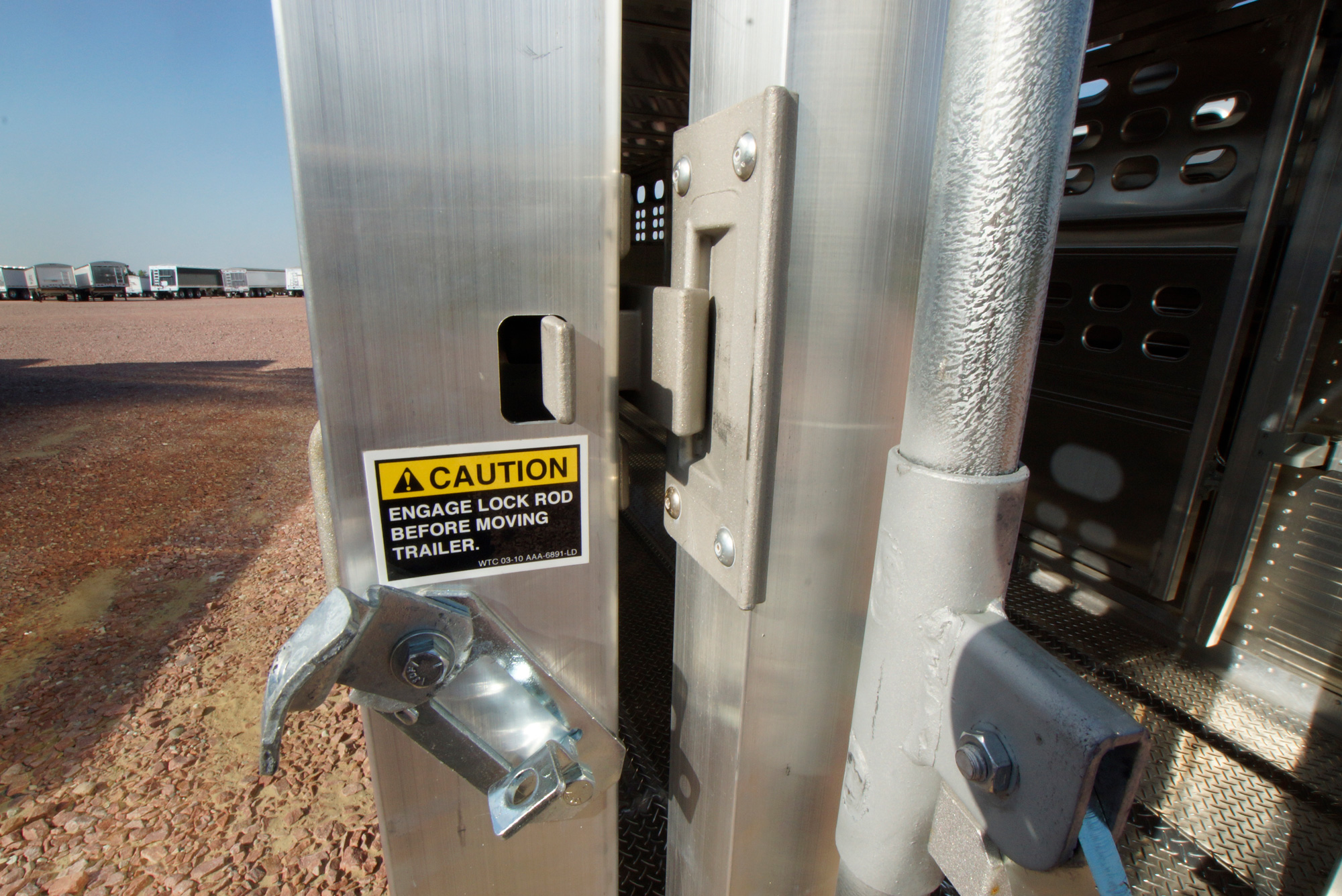

Style "A" with L.H. Roll-up; and anti-rack lock rod and latch with full width rubber bumper. Other rear door styles to choose from.
|
Rear End |
Full-width rubber bumper.
|
Floor |
BELLY: .110" thick aluminum tread plate with 4 longitudinal corrugations. Crossbars on 9" centers.
|
Side Door |
One - With lock rod latch, located on driver's side, with 33" opening.
|
Header |
Extruded aluminum.
|
Finish |
Steel coated with black Corsol™ anti-corrosive metal treatment; all aluminum left natural.
|
Tack Room |
OPTIONAL straight or slanted tack walls and lockable sealed access door.
|
Coupler |
2-5/16 in. diameter ball-type Hammer Blow, A-frame
|
---|---|
Landing Gear |
2,000 lb. Bull Dog top wind A-frame jack, Bolt-on swivel bracket.
|
Brakes |
Four-wheel; electric; 2 in. x 12 in.
|
Axles |
Two - 5,200 lb. rubber torsion; E-Z Lube hubs.
|
Wheels |
Must be added to the order.
|
Tires |
Must be added to the order.
|
