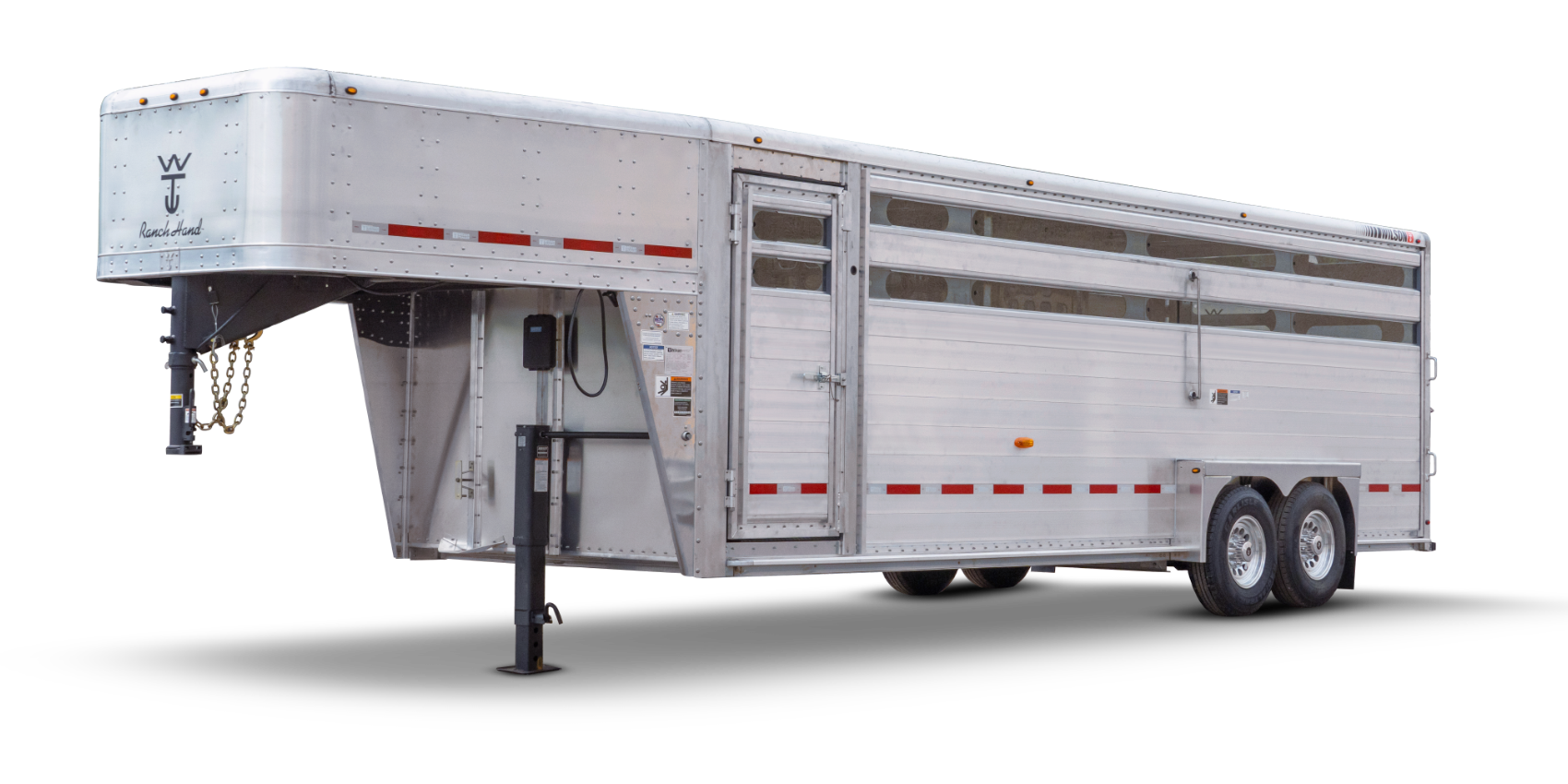

Ranch Hand Punch Style Trailer

Our most popular gooseneck stock trailer. The Ranch Hand punch style aluminum livestock trailer offers you the same reliable construction as our sales leading livestock semi-trailers in a stock trailer having all the essential features and a convenient but limited list of available options. Choose between natural aluminum sides or opt for the popular black or gun metal sides.

Wilson goosenecks are made stronger to endure the toughest of demands, yet remain quieter and easier to pull for a longer period of time.

STANDARD FEATURES

1
Nose Frame and CouplerWilson Trailer provides more strength in the nose area with full-length steel supports. A fully boxed steel frame plus the extra plating and fastening in the transition areas clearly illustrates Wilson’s strength in the trailer nose. Also note the number of crossbars that provide more nose floor strength.
2
FloorWilson uses the hardest alloy for the best wearing and the floor incorporates the highest diamond tread height for the surest footing. Also note, the floor of the trailer is fastened and not welded to the floor crossbars. This allows the floor to flex without the worry of a compromised floor from broken welds. The floor of a livestock trailer directly affects the trailer’s resale value – An important element to consider when purchasing a new trailer. Wilson offers the best floors in the business and their trailers fetch the best prices at trade-in time.
3
Formed PostsPrecision-formed vertical posts are spaced closer together for extra strength. One of the industry’s most unified body designs.
4
Side PanelsWilson Trailer incorporates embossments into the smooth areas of their stock trailer’s punched side panels. With thorough testing and customer feedback, the embossments have proven to greatly increase the panel’s strength and ability to resist denting. Visual appeal is also enhanced, making Wilson goosenecks supreme, long-lasting trailers.
5
Aluminum Sub FrameWith the Ranch Hand’s aluminum sub frame, not only are the weight savings big, there are no steel components, other than the axles, to lose paint, cause rust or electrolysis…The enemy of aluminum trailers.
6
Riveted ConstructionWilson punch style gooseneck trailers are built with riveted construction, which allows them to flex when needed. This means you spend less time maintaining welds and more time realizing your lowest cost of operation. Wilson pioneered the concept of a fully riveted gooseneck trailer to the market.
7
RoofRoof skin stretched to maximum efficiency makes it uncommonly tough for extra life.
8
Skid PlateThe rear of a stock trailer can drag when pulled across uneven surfaces. This scraping action can roll dirt and gravel up into the sub frame and potentially pull the rear of the trailer out. To guard against this, Wilson puts in a full width skid plate across the rear of their sub frames.
9
Slam Catch™Wilson’s spring-loaded catch will firmly grab ahold of the door when you swing it closed behind your load. You will then have more time to safely engage the lock rod and secure the door all the way shut. Feel more confident and more protected with the patented Slam Catch.

Wilson Trailer Advantage

Specs

Length
16 ft. nominal, plus gooseneck - 5716.
18 ft. nominal, plus gooseneck - 5718.
20 ft. nominal, plus gooseneck - 5720.
22 ft. nominal, plus gooseneck - 5722.
24 ft. nominal, plus gooseneck - 5724.
Width
7 ft. inside width.
Height
6 ft.-8 in. inside height.
Front End
Tapered front.
Sides
Formed offset sheet and post sections of aluminum with two sizes of punched and double-embossed oval openings. Formed posts on 21" centers. Choice of Side Pattern: C, D, J, N, U, BN and BT. Full length conspicuity rail ahead and behind fender.
Roof
One-piece, stretched aluminum.
Rear Door
Choose between Style "A", "B" and "E".
Rear End
Full-width rubber bumper.
Floor
BELLY: .110" thick aluminum treadplate with 4 longitudinal corrugations. Crossbars on 9" centers. Aluminum Sub-frame. NOSE: .102" thick flat aluminum.
Side Door
One - With lock rod latch, located on driver's side, with 33" opening.
Header
Extruded aluminum.
Crowd Gate
Style "A" with outside release latch; punched pan.
Finish
Steel coated with black anti-corrosive metal treatment; all aluminum left natural.
Coupler
2-5/16 in. diameter ball-type with adjustable coupler height.
Landing Gear
12,000 lb. drop leg with high-speed crank.
Brakes
Four-wheel; electric; 2 in. x 12 in.
Axles
Two - 7,000 lb. rubber torsion; E-Z Lube hubs.
Wheels
Must be added to the order.
Tires
Must be added to the order.
