Commander

Commander
LENGTH
34’ - 53’
WIDTH
96" - 102"
KING PIN
22” Standard
SIDES
66" - 114"
TRAPS
27" x 31"
WHEELS
(8) 8.25 x 24.5”

Commander

The "original" is available in all widths and all lengths. The Commander has been serving the grain hauling industry for many years. Most notably, the Commander is the first double wall aluminum grain trailer available with a sloped front and rear, and understandably since it a Wilson, the trailer possesses all the superior quality elements Wilson is known for.

It is standard with the original RollerTrap™ strap grain trap – The industry's easiest to use and trouble-free trap opener since 1996.

STANDARD FEATURES

1

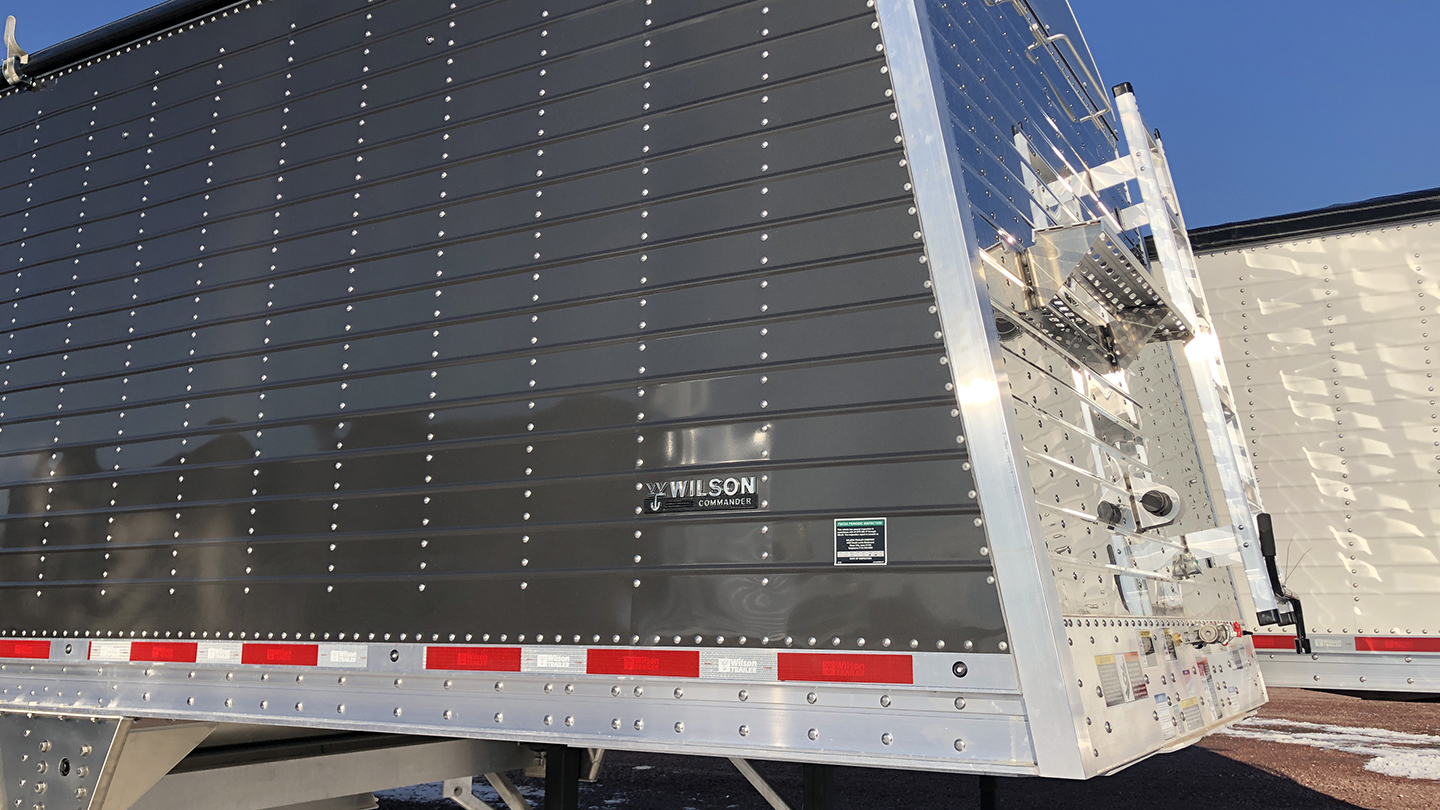

Front End The Wilson Commander is the first double wall aluminum grain trailer with a sloped front and rear. It is available in all lengths, both widths and all suspension configurations.
2

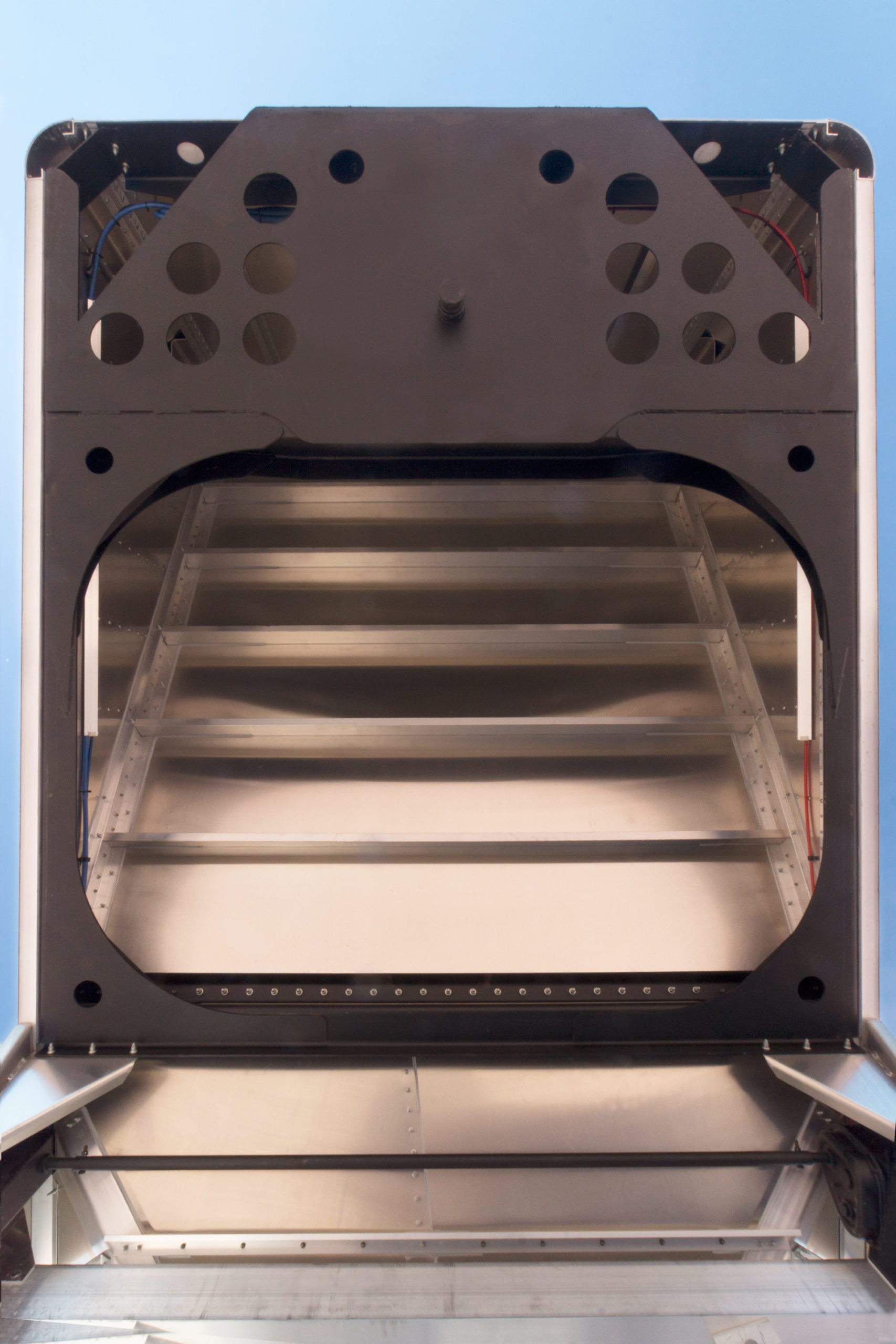

King Pin Open king pin design transfers weight to the side rails and is a proven design since 1986. Unobstructed access to the nose area allows for much easier cleaning and maintenance.
3

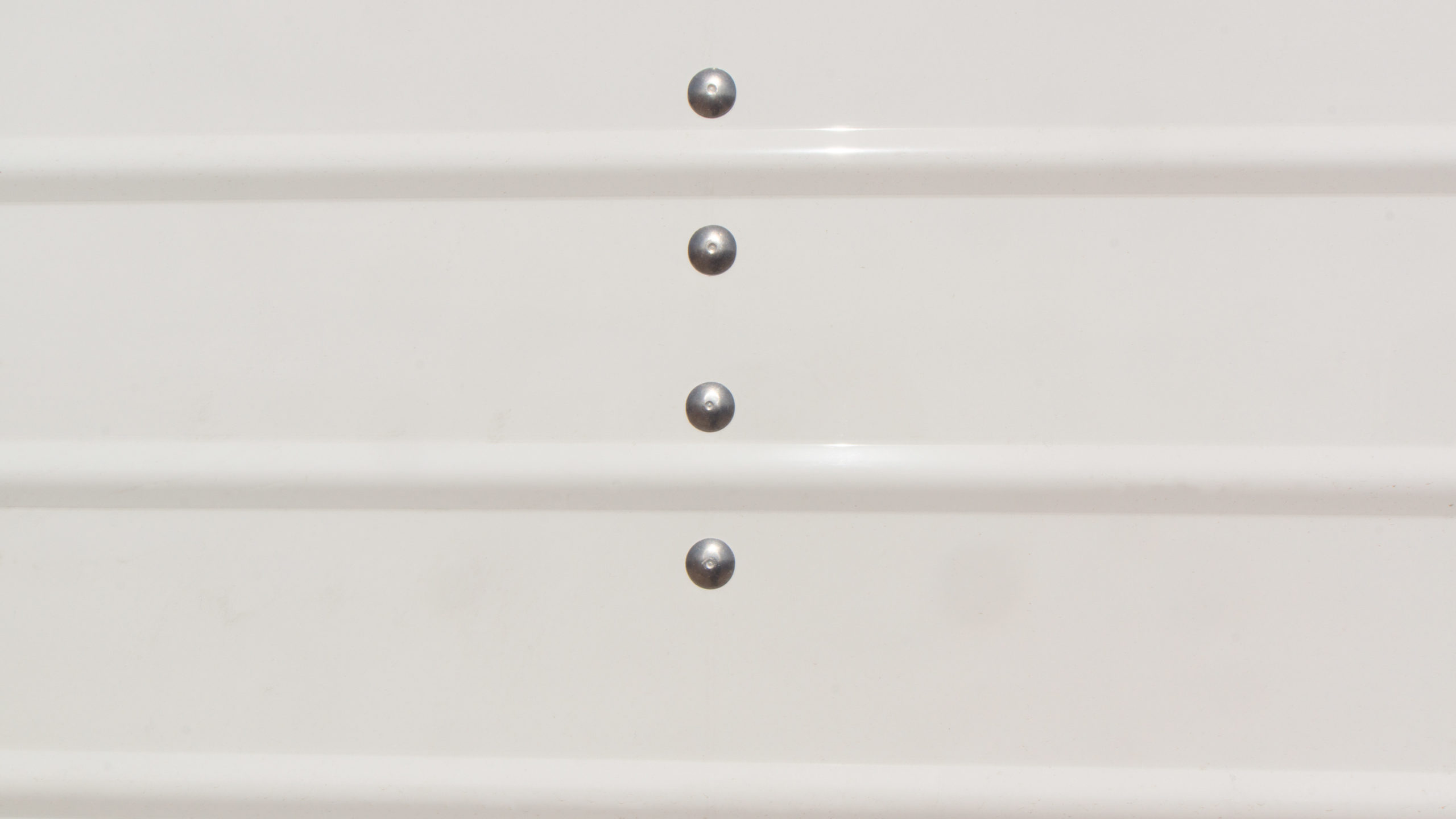

Riveting Larger diameter rivets with larger heads generate greater, more desirable shear strength and greater side strength.
4
RollerTrap™ The easiest trap opener to use and maintain in the industry with virtually no obstructions below the trap frame for “true” ground clearance.
5

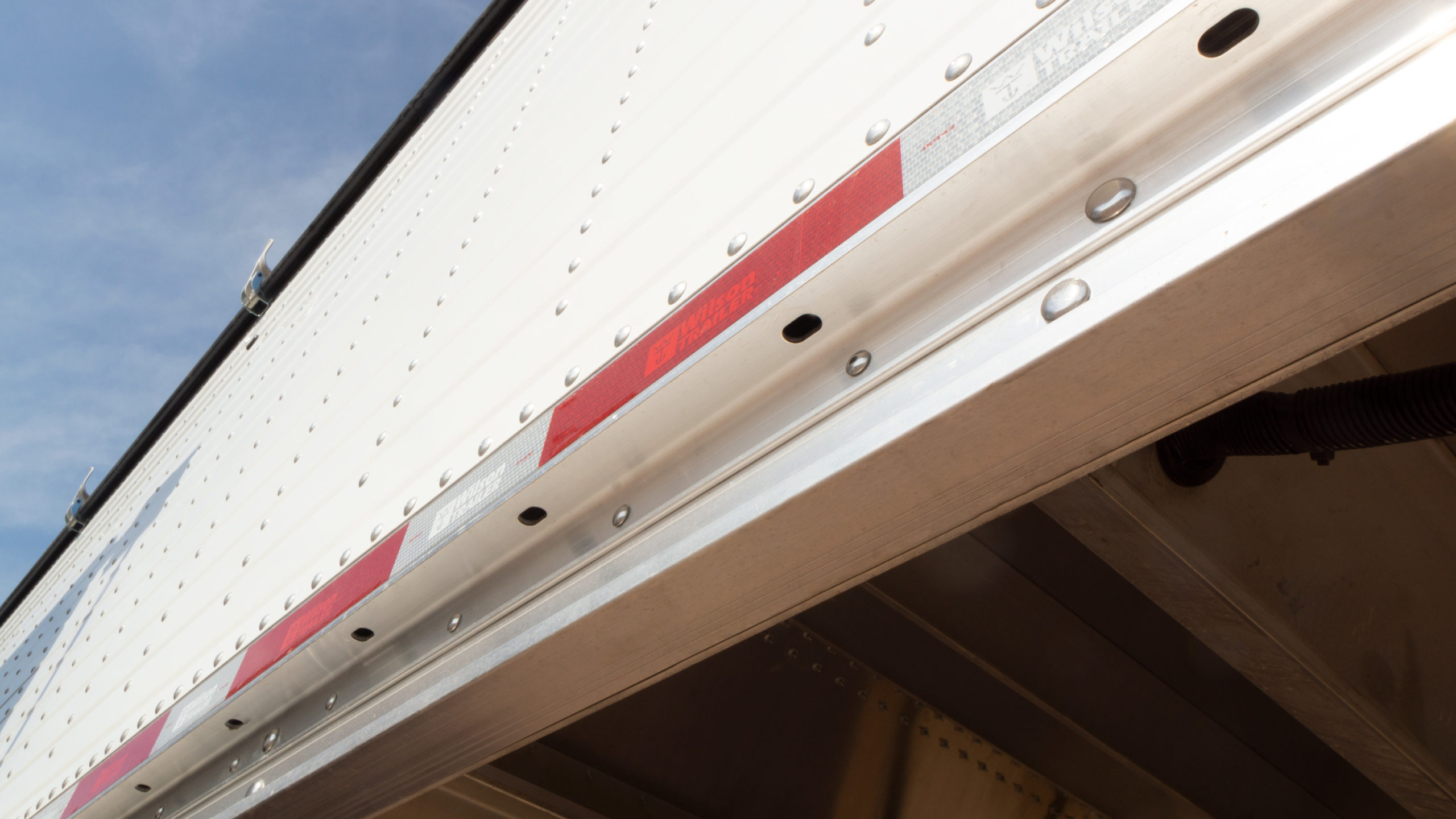

Side Vent Ports Positioned between each set of side posts, the vent ports along the lower rail allow for free air movement between the inner and outer walls. This air flow regulates the temperature and humidity differences to help reduce sweating, which can cause material to stick to the inside.
6

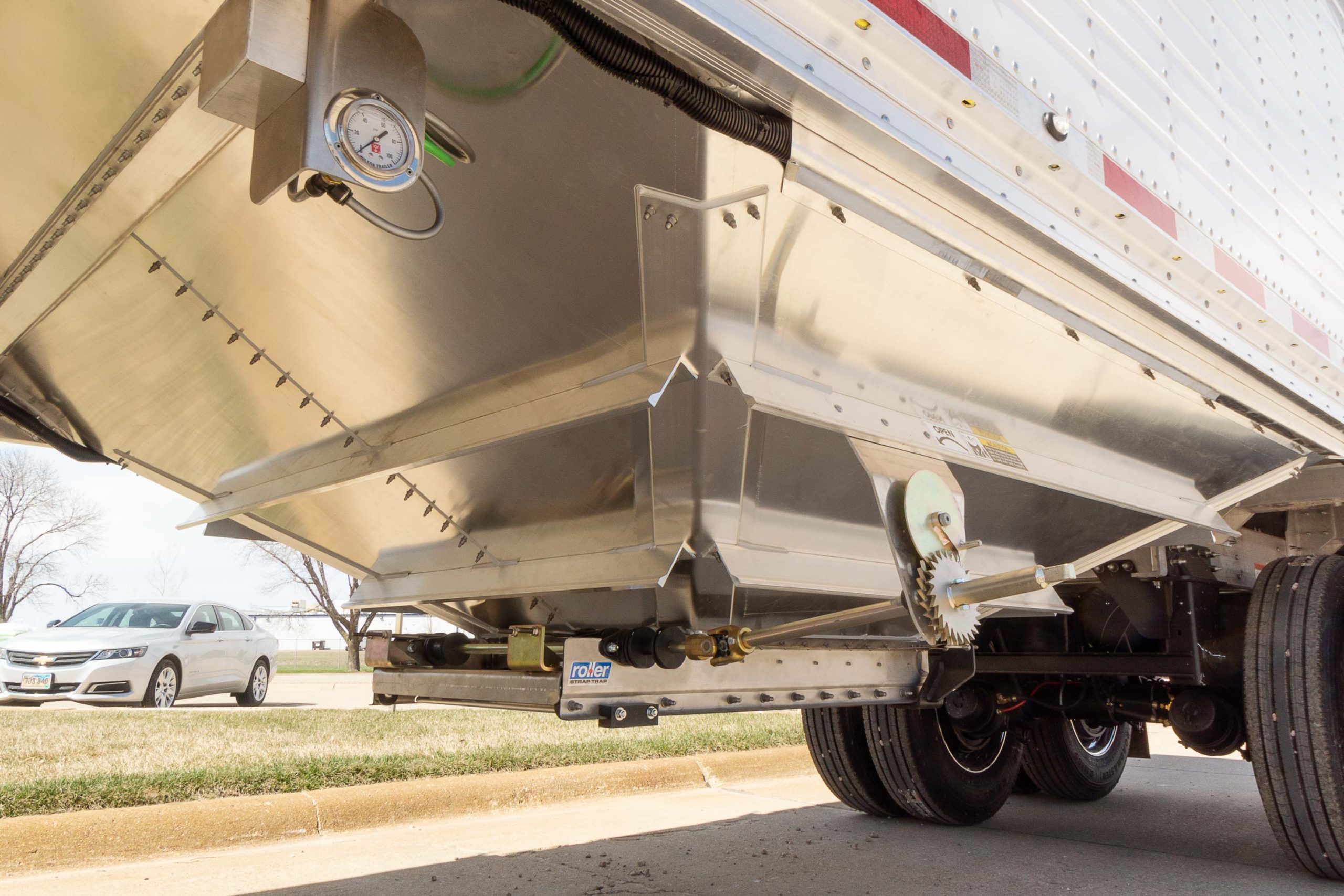

Hoppers Wilson’s two-piece hoppers are standard with 2 stiffeners per side plus corner bracing for a stronger hopper. The stiffeners also serve as handy knock rails for sticky product.
7

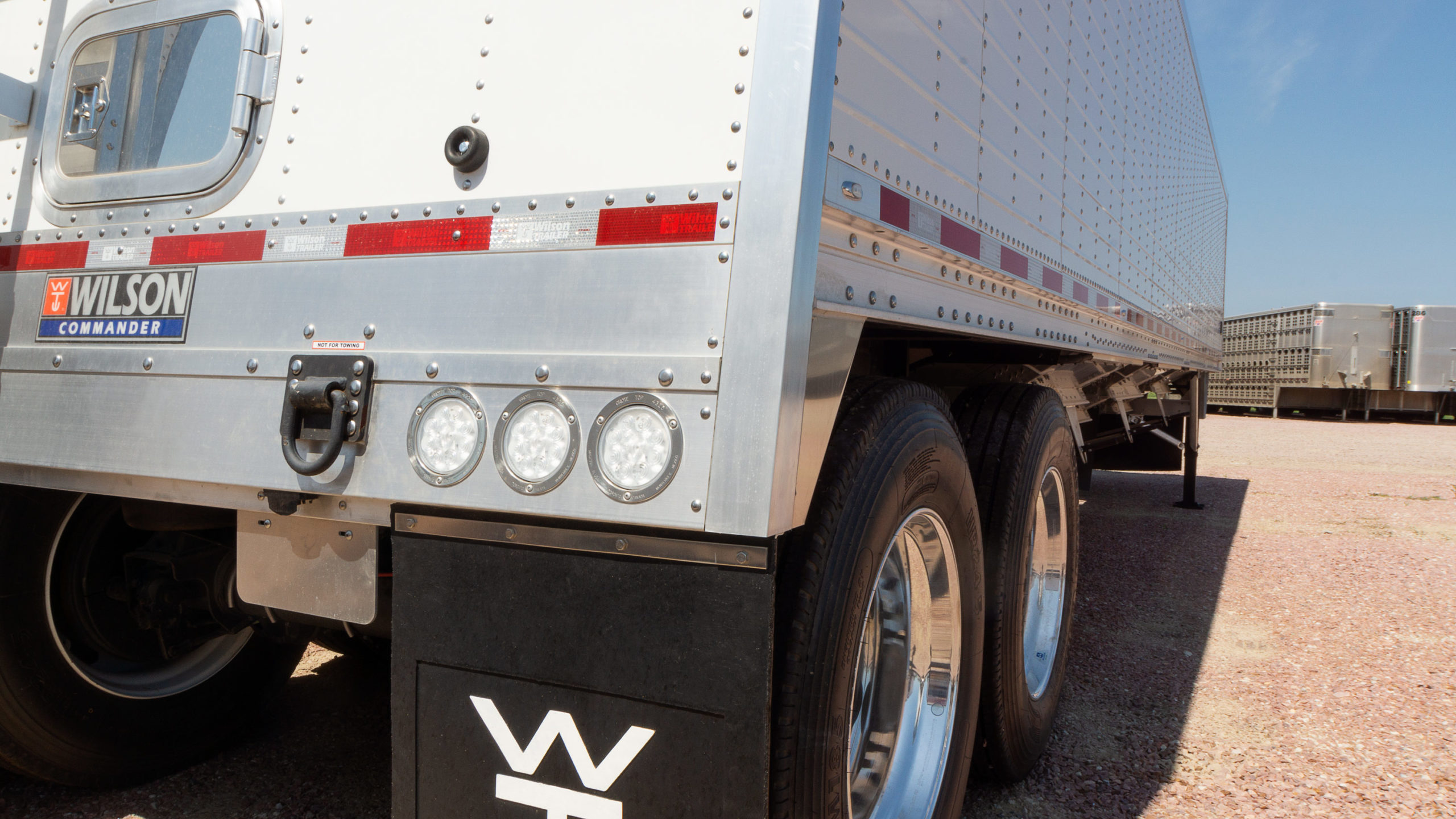

Rear End The height of Wilson’s front and rear channels are key to the design of providing more strength where it is needed.

Wilson Trailer Advantage

Specs

length
34’ 0” - 53’ 0” overall lengths
Width
96" - 102"
HEIGHT
Two-speed, vertical, JOST UL500 Ultralight, No-Lube. 114" setting.
KINGPIN
22” standard king pin setting
LANDING GEAR
Two-speed, vertical, JOST UL500 Ultralight, No-Lube. 114" setting.
FRONT
Sloped Front End: pre-painted .050" aluminum front skin, single wall construction with extruded aluminum vertical Z-type posts, corner sections, lower front finish rail. Ladder assembly and short catwalk. Two grab handles on header.
Sides
Double wall construction; one-piece .050" pre-painted aluminum outside skin; extruded aluminum Z-type side posts; 66" high available with one-piece outside skin in white only. All other sizes are vertically spliced panels. Inside skin one-piece from 66" to 84" side height. Vent port in rub rails between each side post.
Rear End
Sloped rear end: single-wall construction. Rear skin is smooth, pre-painted white, with 5 extruded aluminum Z-posts. Two-piece extruded aluminum rear bumper. Ladder assembly and short catwalk. Two-rung ladder extension is standard. Two grab handles on header.
Spare Tire Carrier
Cradle-type between hoppers. Optional at extra cost.
BINDER BARS & TARP SUPPORTS
41' and 43' units have 8 permanent arched aluminum tube binder bars with all bows at 10" rise. Two nylon 1" wide straps, spaced on 22" centers at center of trailer, serve as tarp supports.
LOWER HOPPERS
Two structurally integrated lower two-piece hoppers with extruded aluminum corners and 39-1/4 degree slopes on the side, and 33-1/2 degree slopes on the front and rear are standard. Hoppers have extruded aluminum stiffeners; 2 stiffeners on the front and rear, and 2 stiffeners on the sides. Hoppers are divided equally by a hopper center divider. Four-piece hoppers available as an option.
Hopper Traps
Two aluminum RollerTrap assemblies have 27-1/8" wide x 27 wide x 31" long openings. Additional sizes available.
Trap Assembly Ground Clearance
The standard ground clearance of the trap assemblies is 17" on 11 x 24.5 tires. Ag hoppers (21" distance) are available.
Trap Openers
Each trap is opened and closed manually through rollers and twin sets of flexible belts and a removable crank on the driver's side.
Tarp
Roll tarp with aluminum caps is available as an extra cost option.
Mud Flaps
Black rubber anti-spray type are standard.
Finish
All steel components are treated with an anti-corrosive coating. Trap opener plated with yellow zinc dichromate. All aluminum components are left natural.
Lights
Internal Ground System: 12 volt I.C.C. lights with 7-way connector and wiring harness is standard. Two groups of three individual red LED STOP & TURN tail lights are factory sealed. Sealed LED clearance lights have rectangular polycarbonate (Grote MicroNova) lenses. Combination LED center marker light and turn signal is standard.
SUSPENSION
H-9700 fabricated, under-mount, welded components with screw adjusted radius rods and 11,200 lb. rating two-leaf springs. Subframe: Steel longmembers and crossbars are standard; aluminum is optional. Haldex automatic slack adjusters are standard. with Stemco Guardian seal hub cap.
Axles
Two: 5" round with 20,000 lb. rating each. Tandem Setting: 49-1/4" from rear bumper to center between axles. Track Width: 71-1/2" on 96" wide; 77-1/2" on 102" wide.
Brakes
16-1/2" x 7" x 5/8" double anchor pin, air brakes. Less dust shields. EF non-asbestos brake linings. Wabco; 2 sensor, 1 modulator.
Hubs
Dura-light hub using MacLean-Fogg Axilok spindle nuts, with Stemco Guardian seal hub cap.
Drums
Cast steel, outboard mount.
Wheels
Eight 8.25 x 24.5 white steel disc. 10 hole hub-piloted wheels are standard.
Tires
Many options available

POPULAR OPTIONS
